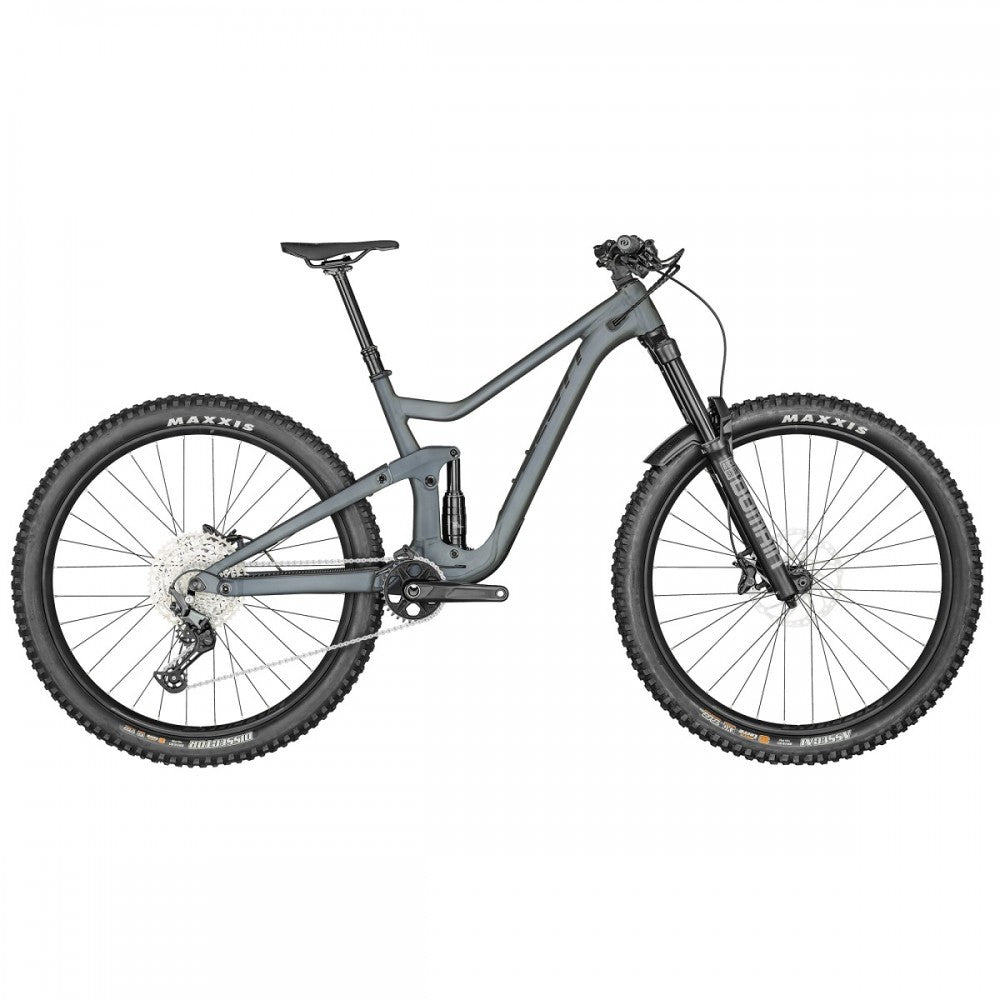

Bike Ransom 930 2022

Frameset

• Frame

  6011 SL custom-butted alloy; molded chainstay and down tube protection
• Fork

  RockShox Domain R, Solo Air spring, rebound adjust, 42mm offset, includes RockShox fender, 170mm
• Shock

  X-Fusion NUDE, 3-mode adjust via Scott TwinLoc TSP-R (Lockout, Traction Control, Descend), rebound adjust, trunnion mount, 205mm x 65mm

Wheels

• Hubs

  Shimano MT410, 110x15mm Boost front, 148x12mm Boost rear with HG driver
• Wheels

  Syncros X-30S, sleeve joint, 30mm width, 32 hole, tubeless ready
• Wheel Size

  29"
• Spokes

  Stainless steel, 15g/1.8mm
• Tires

  Front: Maxxis Assegai, Dual Compound, EXO, TR, 60 TPI, foldable, 29" x 2.6"
  Rear: Maxxis Dissector, Dual Compound, EXO, TR, 60 TPI, foldable, 29" x 2.6"

Drivetrain

• Chain

  437.9mm, 436.0mm, Scott upper slider, Shimano MT511, 32 tooth, Shimano Deore M6100, 12-speed
• Crank

  Shimano MT511
• Bottom Bracket

  353.5mm (22mm drop), 346.5mm (15mm drop), Shimano MT500, 92mm press-fit
• Rear Derailleur

  Shimano Deore M6100, 12-speed
• Shifters

  Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS

Components

• Brakeset

  Shimano MT520, 4-piston, Shimano RT64 CENTER LOCK rotors (203mm front, 180mm rear), Shimano MT520
• Handlebar

  Syncros Hixon 1.5, 2014 double-butted alloy, 780mm width, 20mm rise, 8° sweep, 31.8mm clamp diameter
• Saddle

  Syncros Kaslo 2.0, CrMo rails
• Seatpost

  Syncros Duncan 2.5 dropper, remote integrated with Scott TwinLoc lever, 31.6mm, Single bolt, 31.6mm, Single bolt
  Drop:
  125mm (SM)
  150mm (MD)
  170mm (LG/XL)
• Stem

  Syncros XM1.5, 6061 alloy, 50mm length, 0° rise, 31.8mm bar clamp
• Grips

  Syncros Pro, lock-on
• Headset

  Syncros OE Press Fit E2
