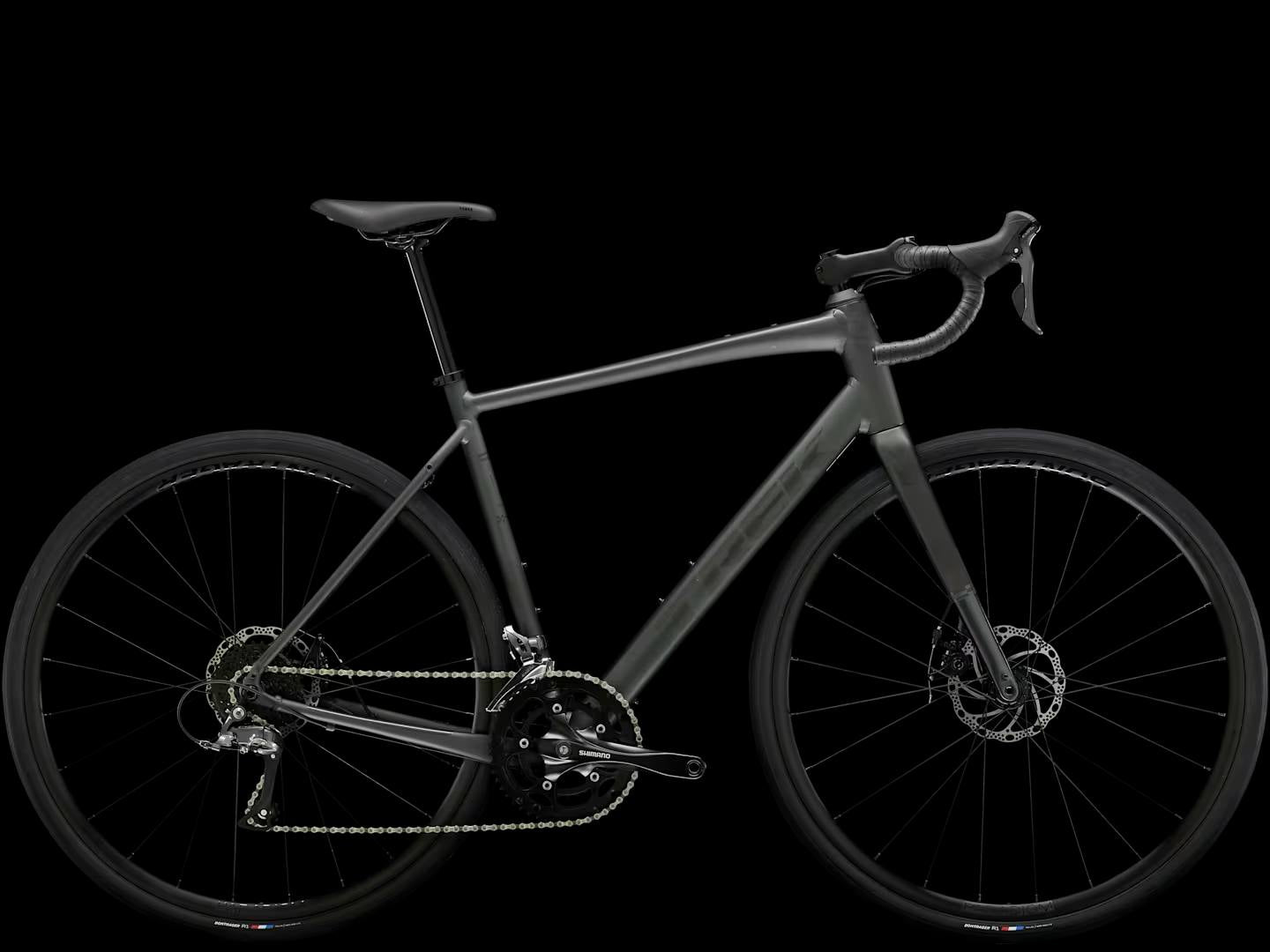

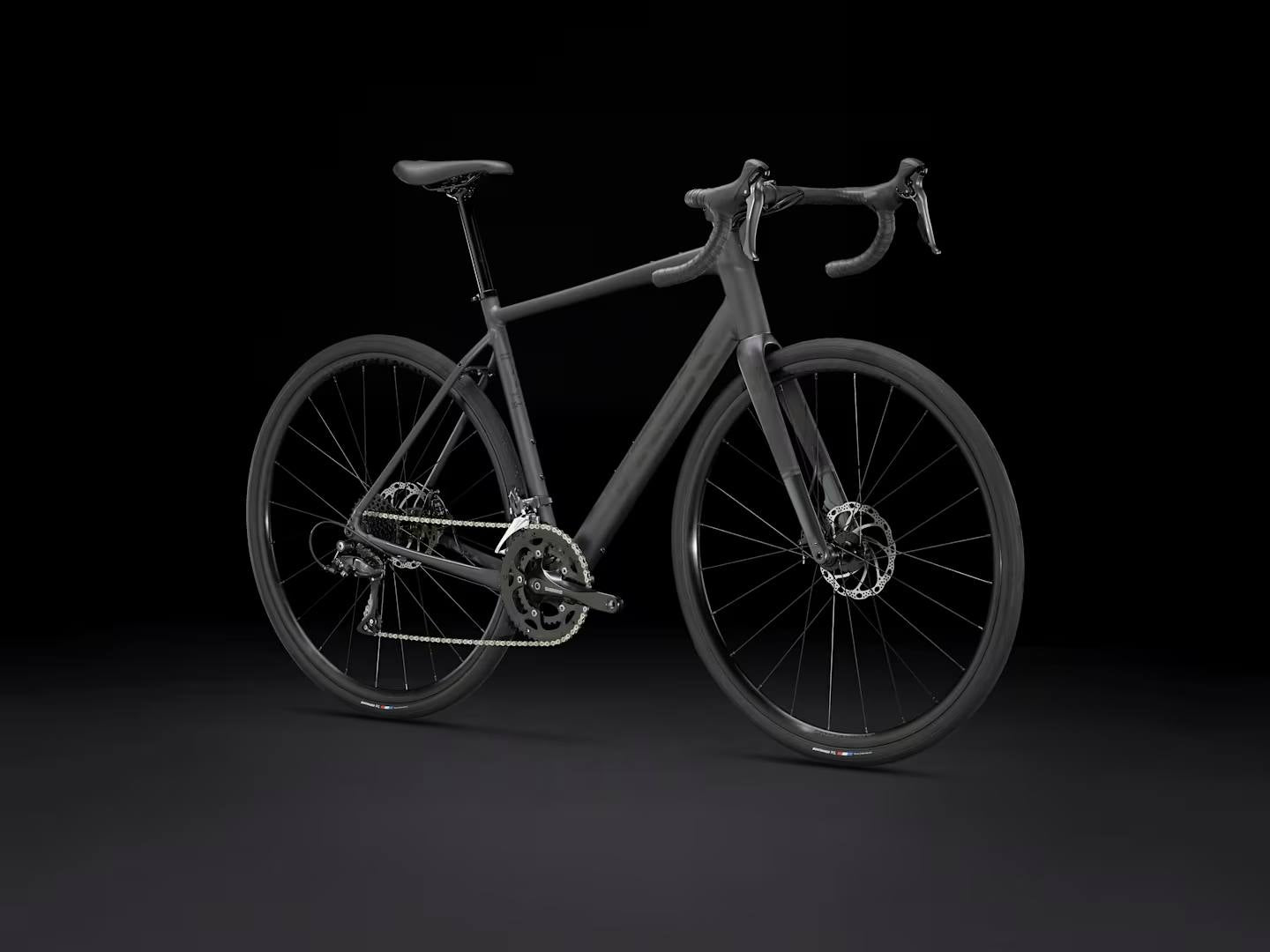

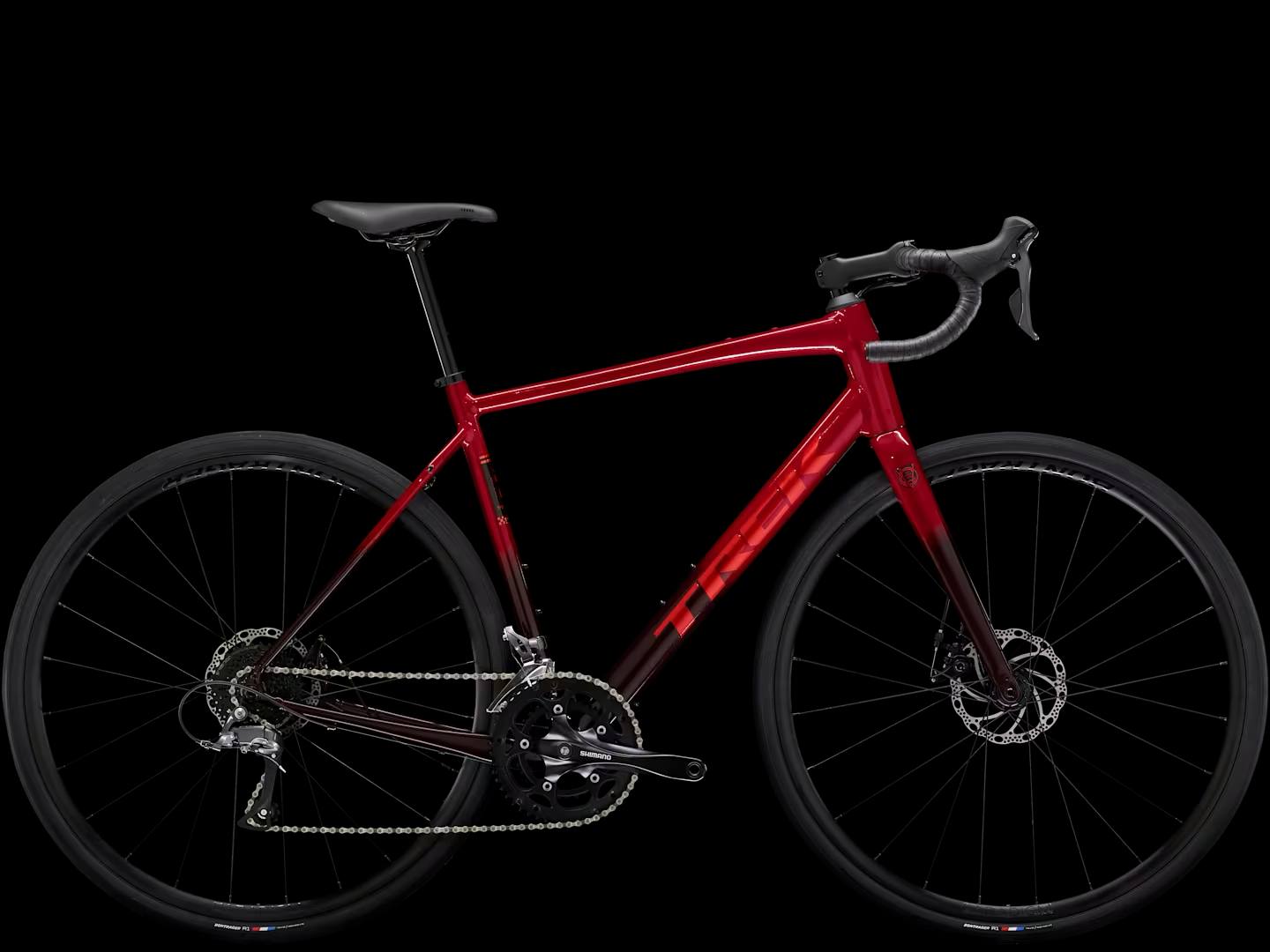

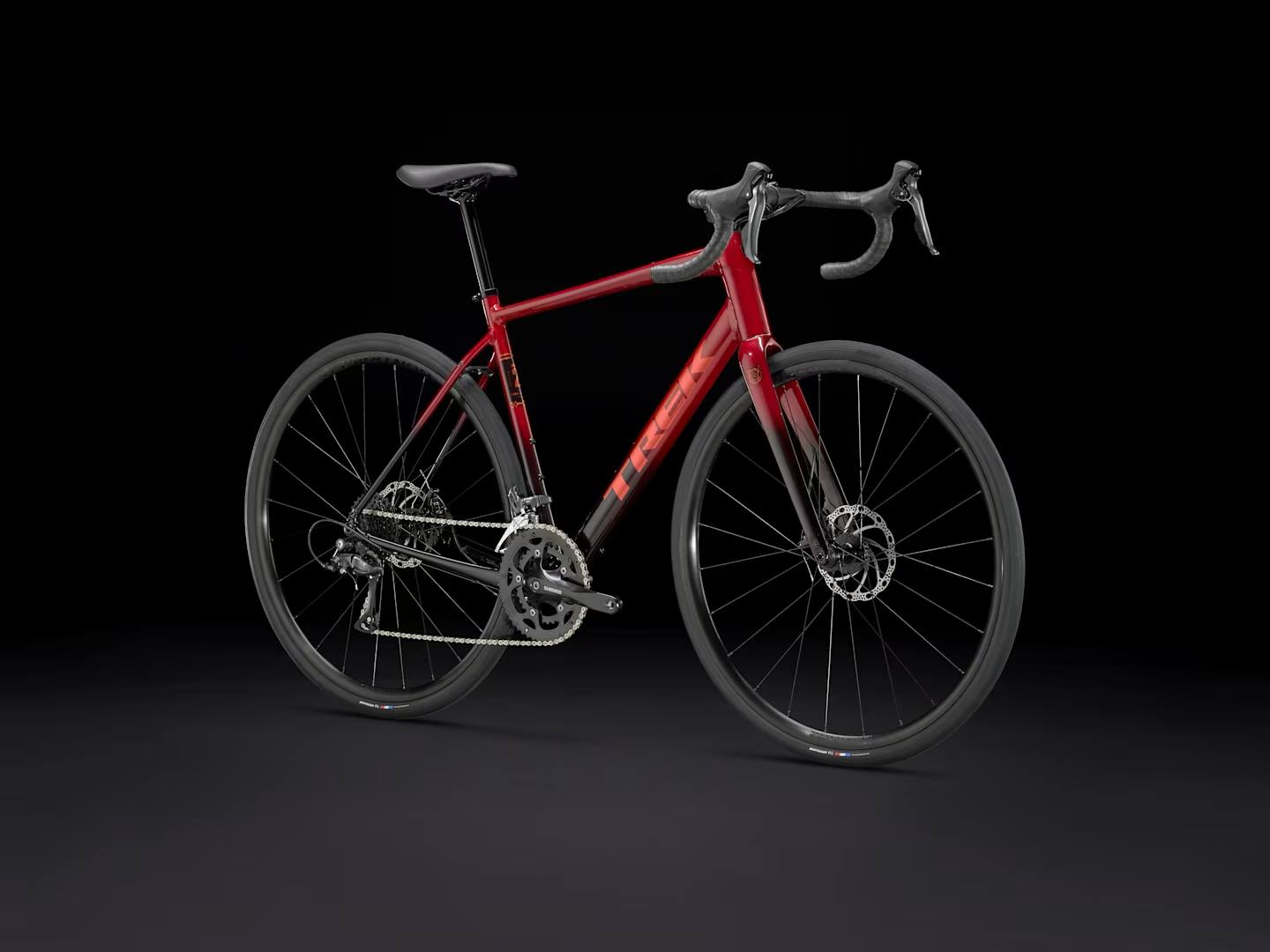

Domane AL 2 Gen 4

₱59,380.00 PHP

Sale Sold out

Color Matte Lithium Gray Crimson to dark Carmine Fade

Size 44 49 52

Quantity

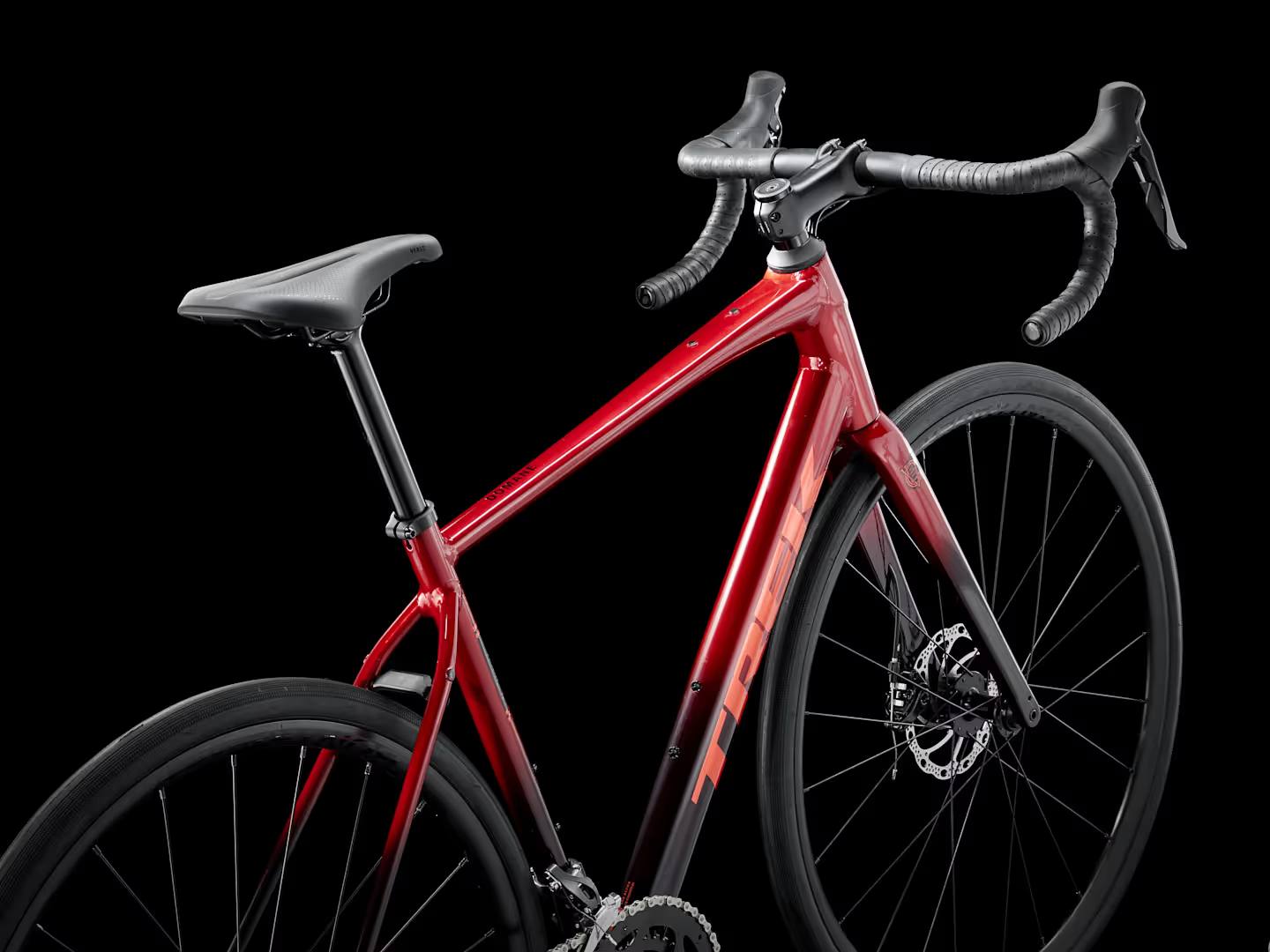

Frameset

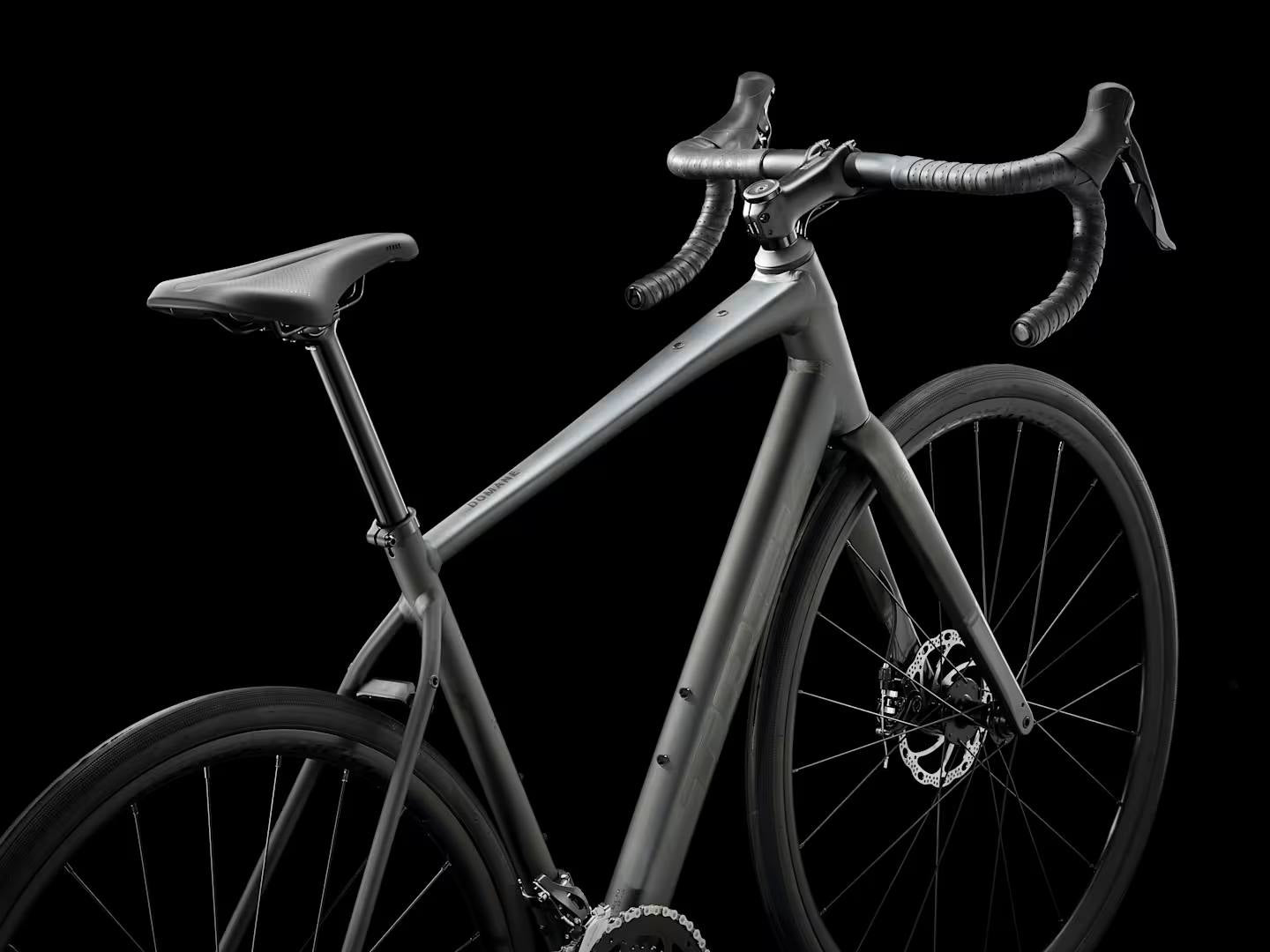

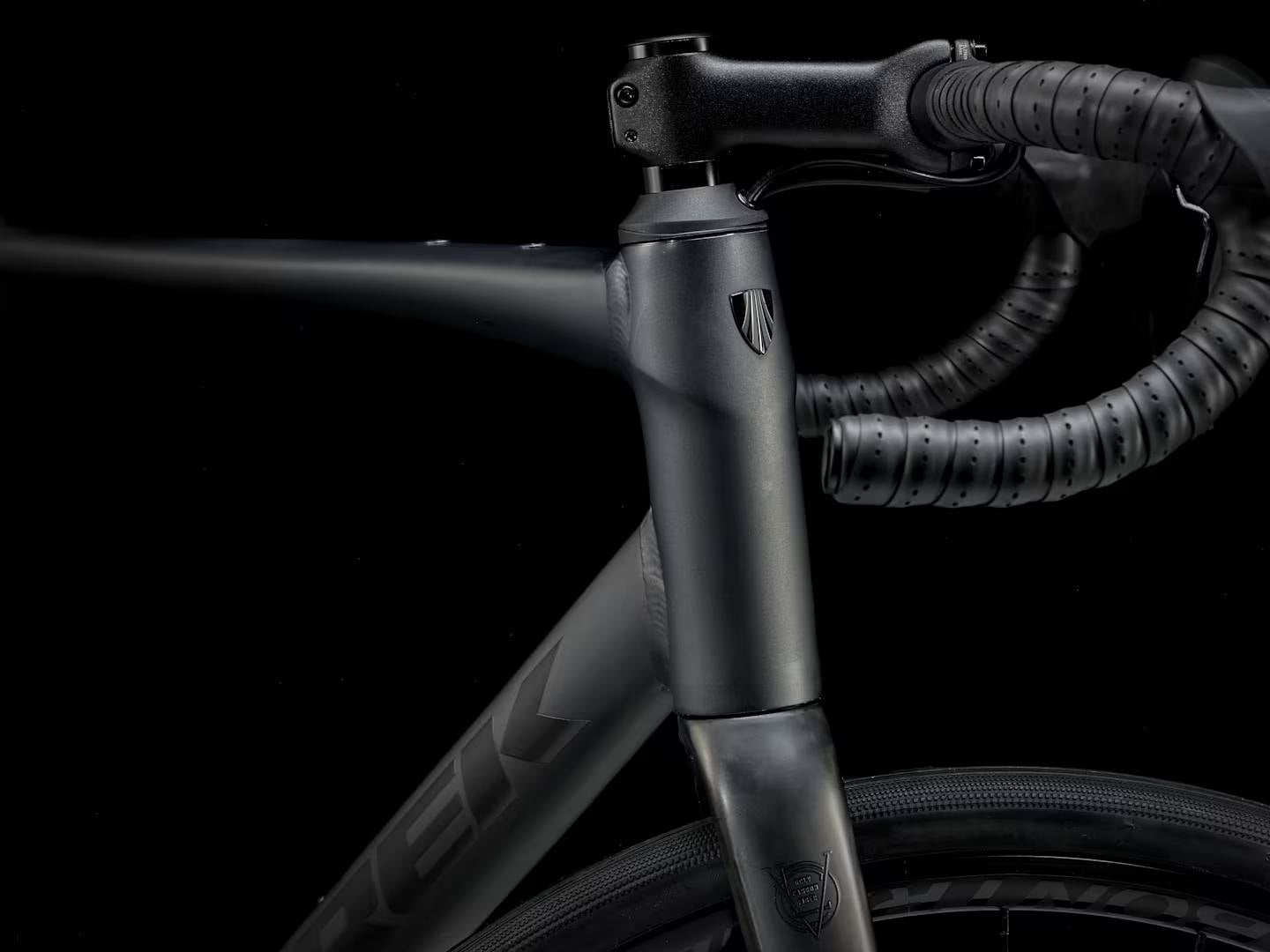

Frame	100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

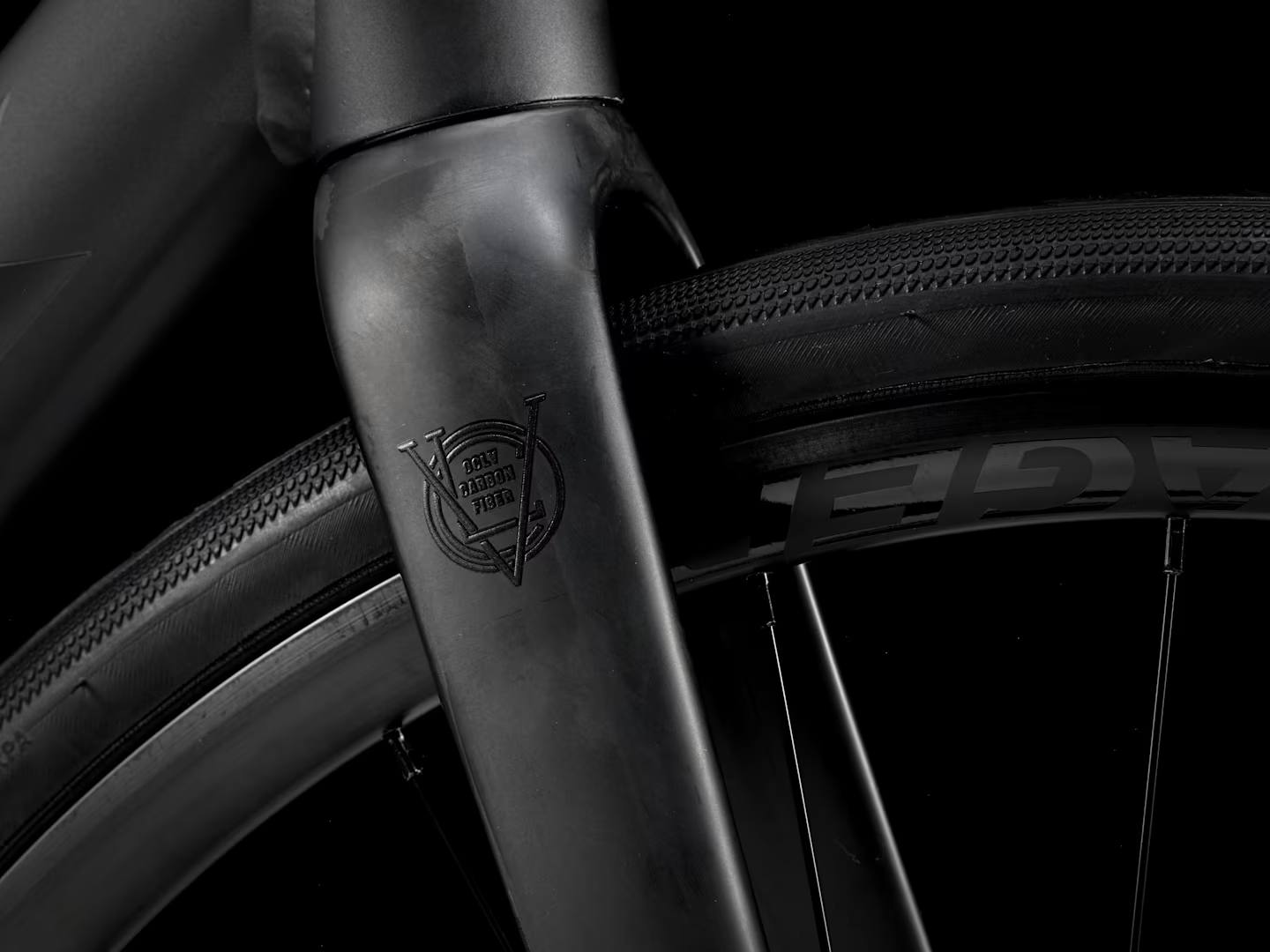

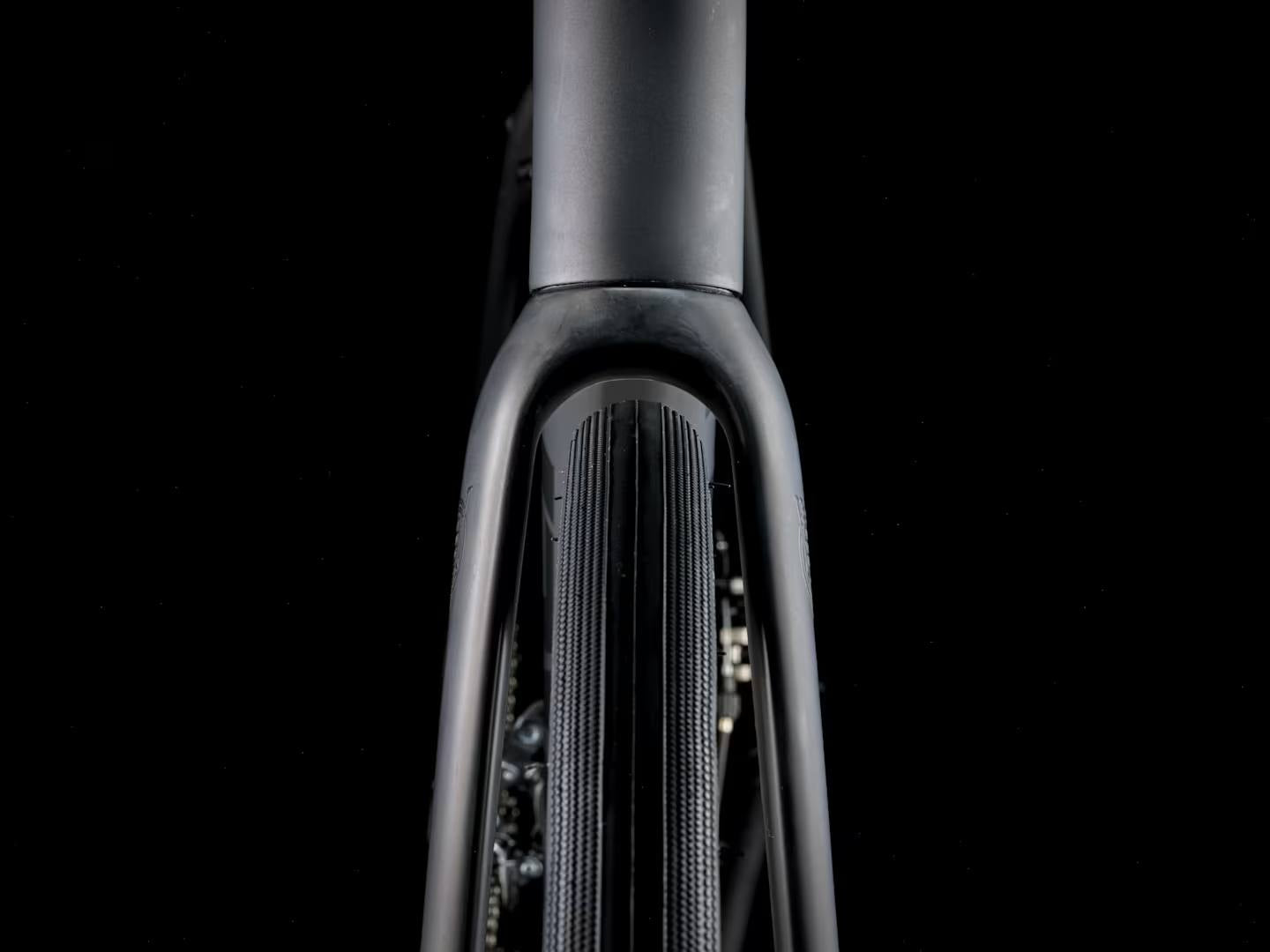

Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight

Weight	56 - 10.55 kg / 23.26 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

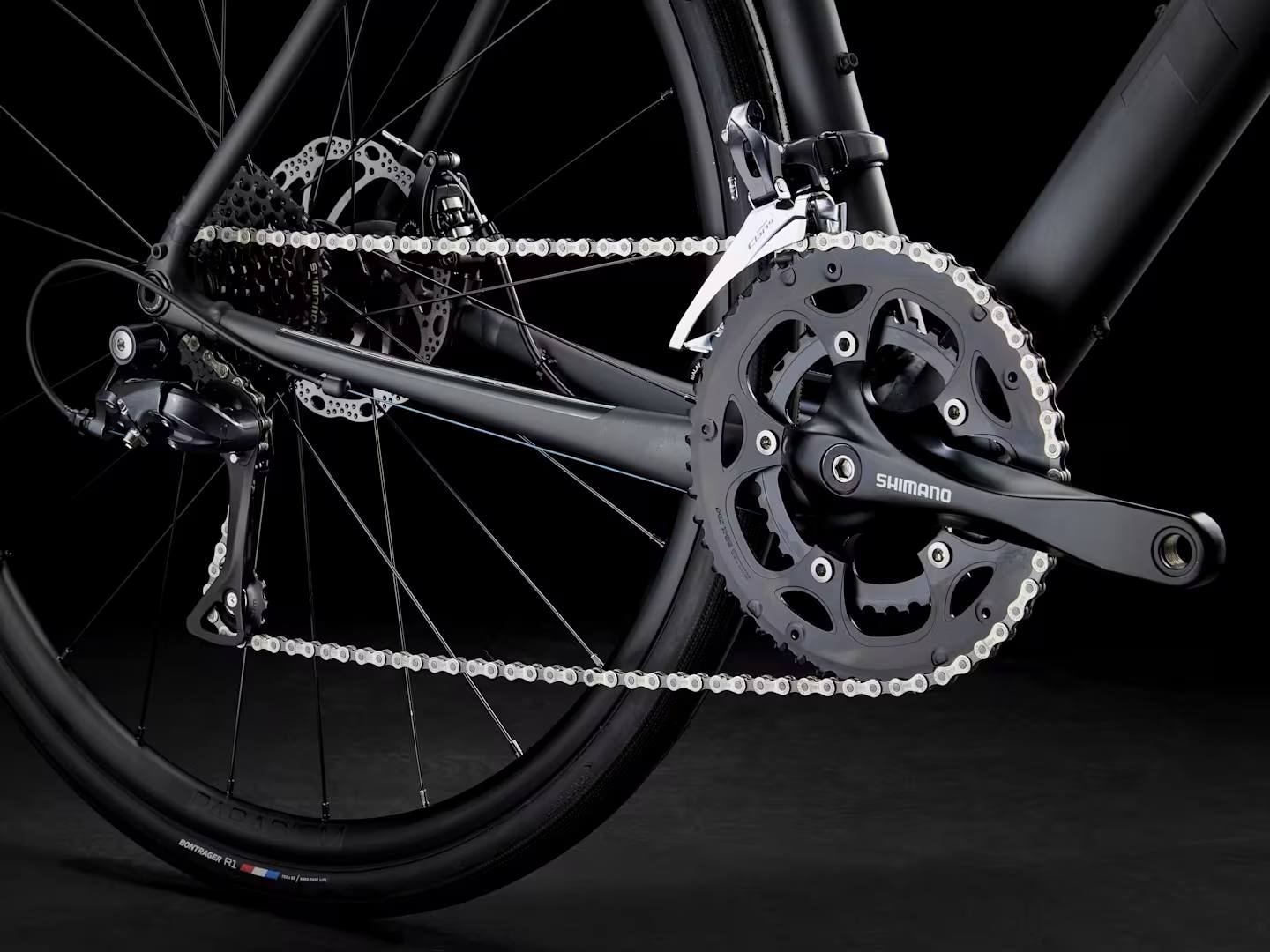

Drivetrain

*Shifter	Size: 44, 49, 52, 54, 56, 58, 61 Shimano Claris ST-R2000-R, 8 speed, right
*Shifter	Size: 44, 49, 52, 54, 56, 58, 61 Shimano Claris ST-R2000-L, 8 speed, left
Front derailleur	Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
Rear derailleur	Shimano Claris RD-R2000, long cage, 34T max cog
*Crank	Size: 44 Shimano RS200, 50/34 (compact), 165mm length
	Size: 49, 52, 54 Shimano RS200, 50/34 (compact), 170mm length
	Size: 56, 58, 61 Shimano RS200, 50/34 (compact), 175mm length
Bottom bracket	Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Cassette	Shimano HG31, 11-32, 8 speed
Chain	Shimano Sora HG71, 8 speed
Max chainring size	1x: 50T, 2x: 50/34

Wheels

Hub front	Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Components

Saddle	Verse Short, steel rails, 145mm width
*Seatpost	Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
*Seatpost	Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

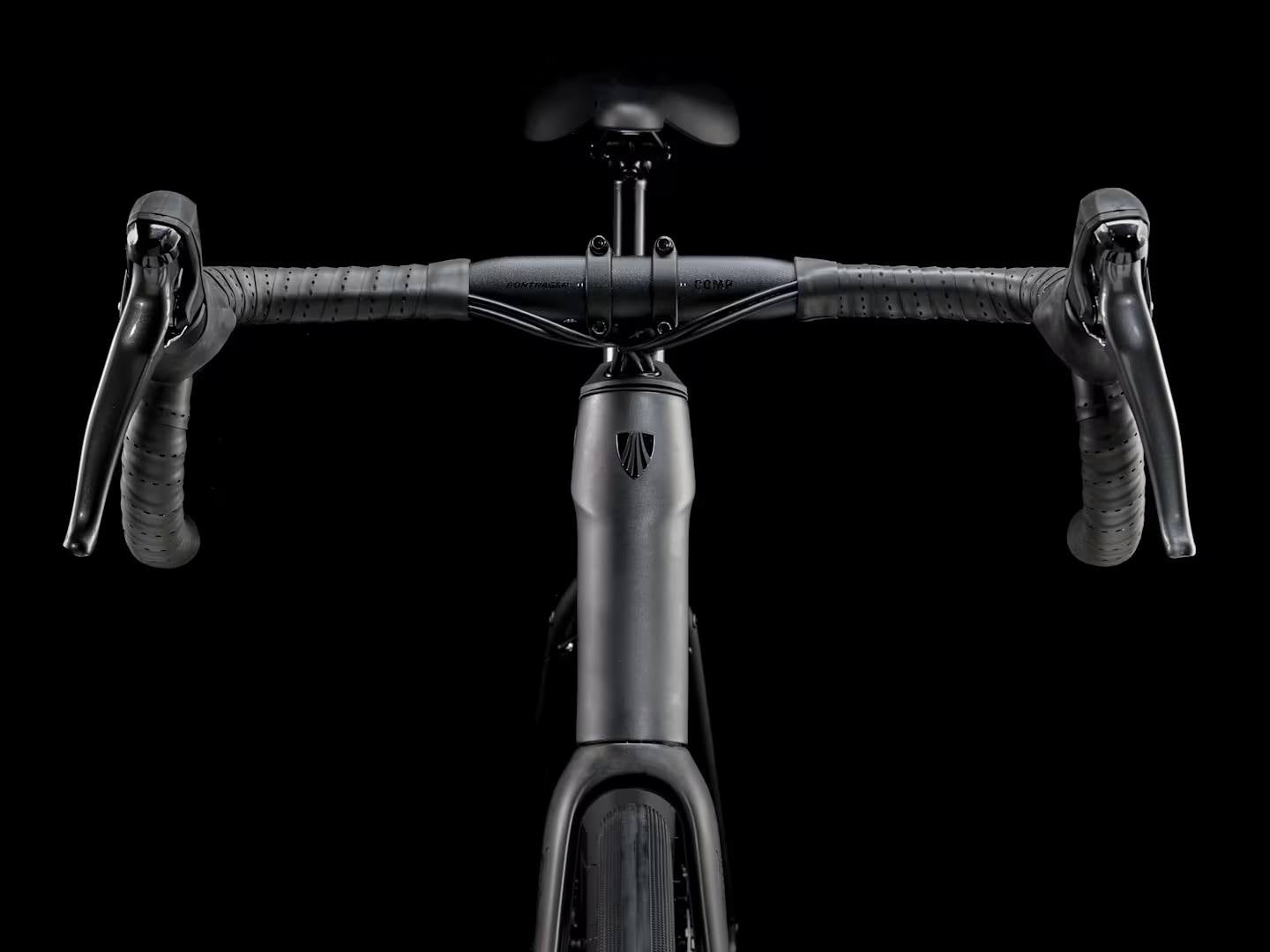

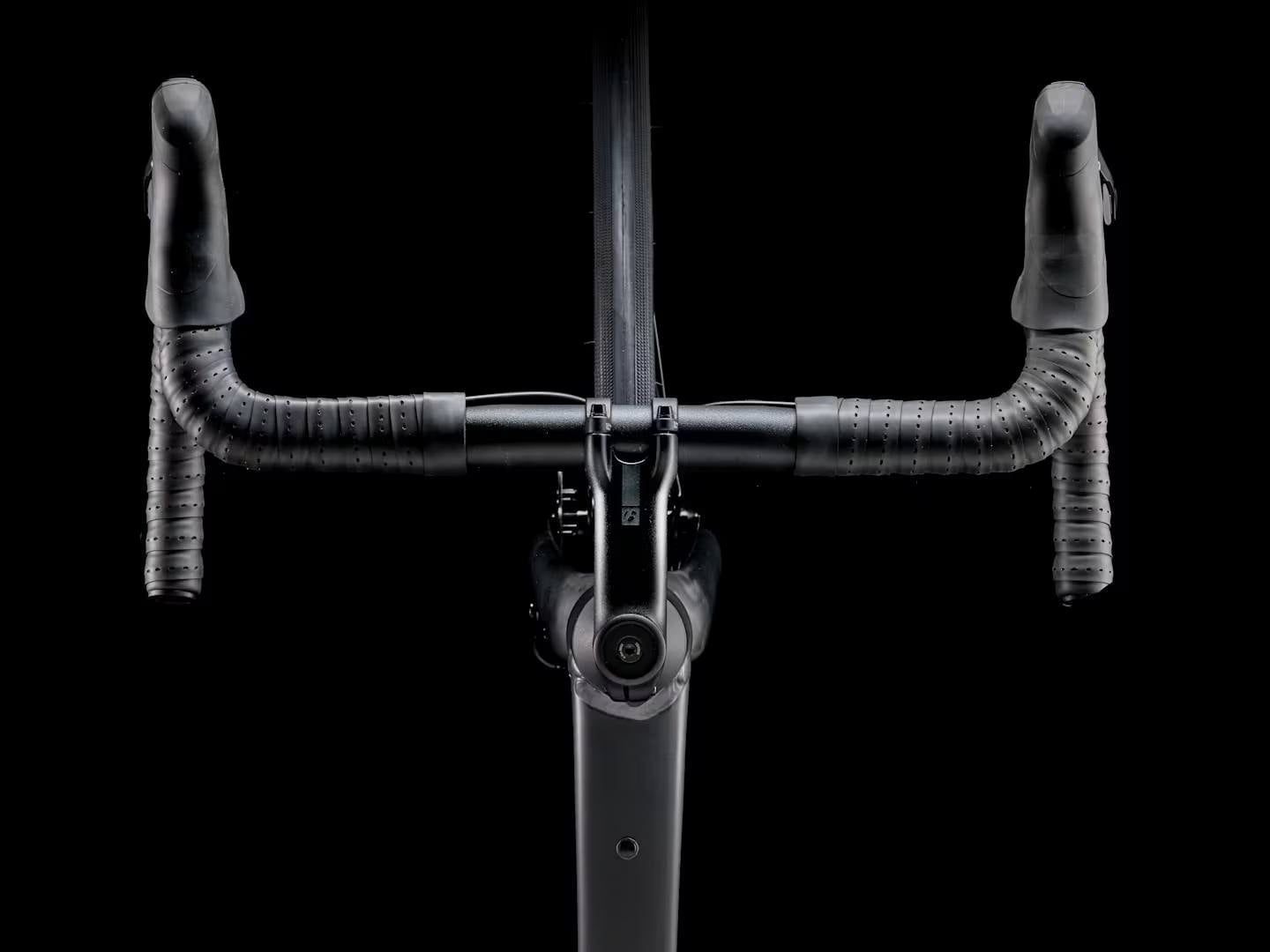

*Handlebar	Size: 44 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
	Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
	Size: 49 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: 52 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: 52 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
	Size: 54, 56 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
	Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
	Size: 58, 61 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
	Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 44 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
	Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
	Size: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

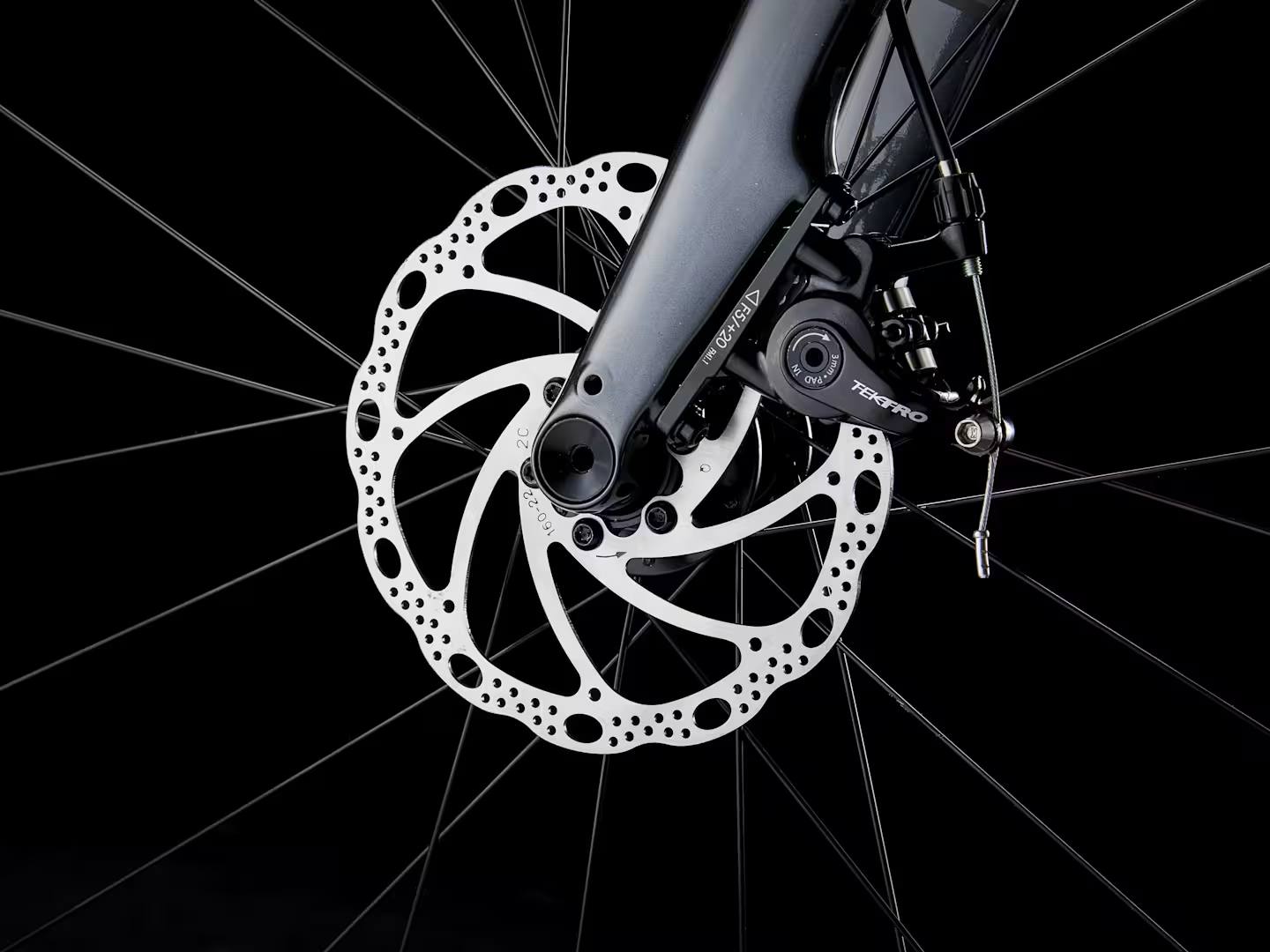

Brake	Tektro C550 mechanical disc brake, dual piston, flat mount
Brake rotor	Tektro wave, 6-bolt, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
