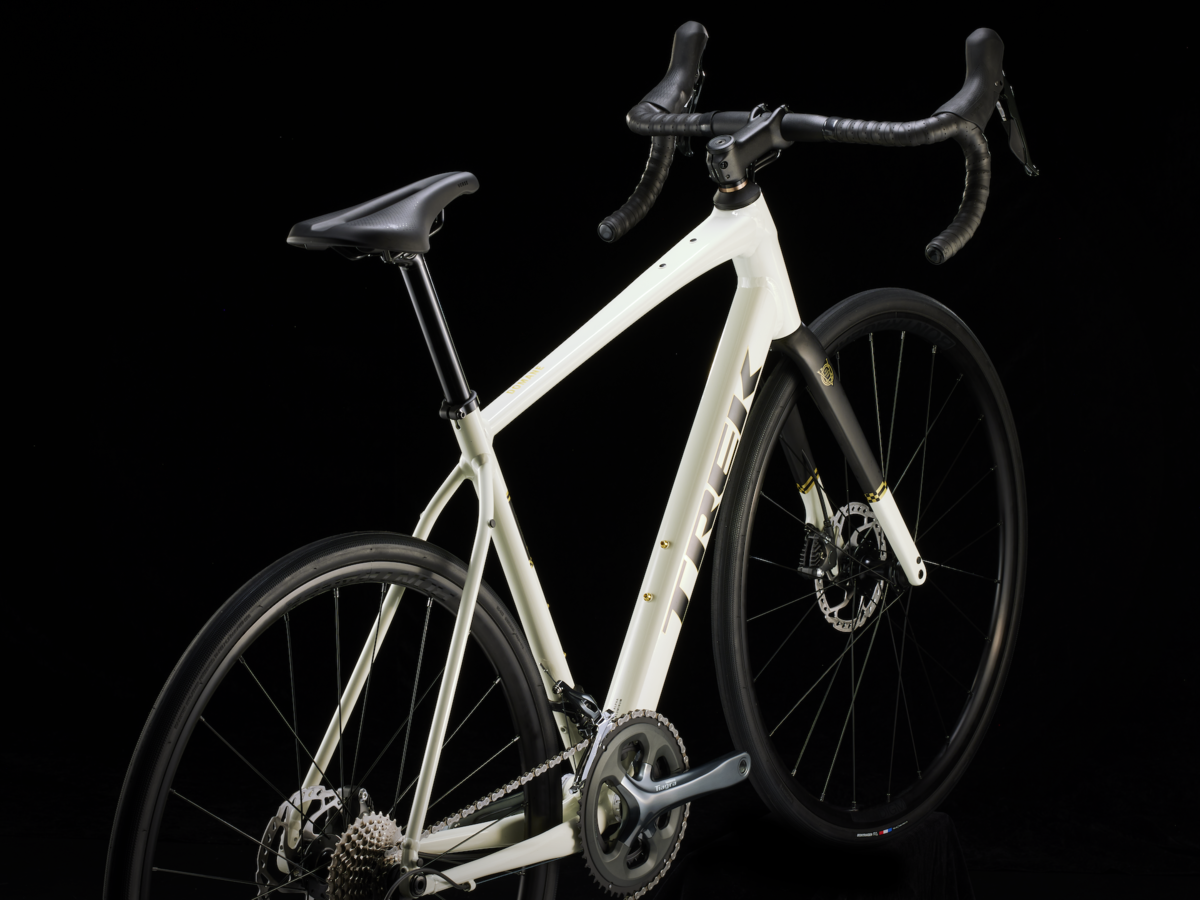

Domane AL 4 Gen 4

₱129,500.00 PHP

Sale Sold out

Color: Era White

Size 44 49 52

Quantity

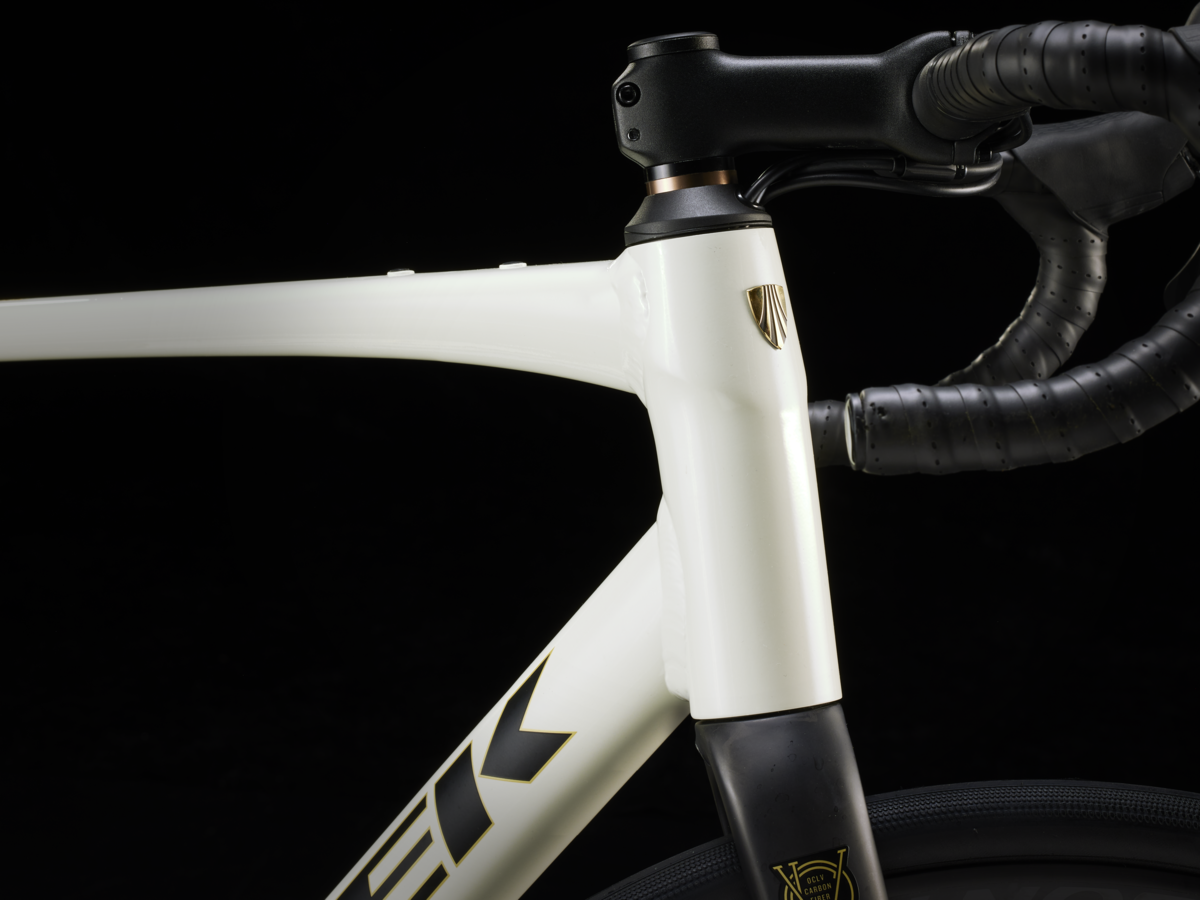

Frame	100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

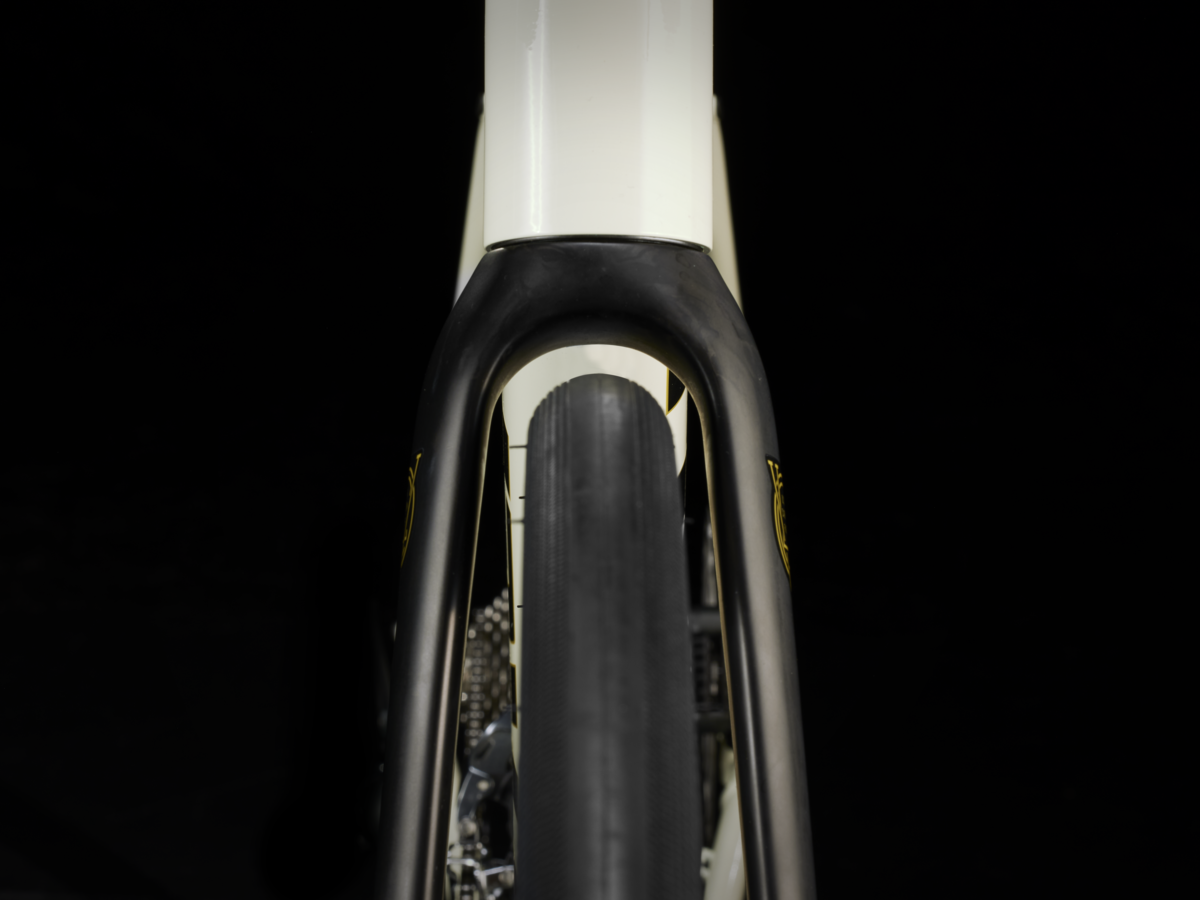

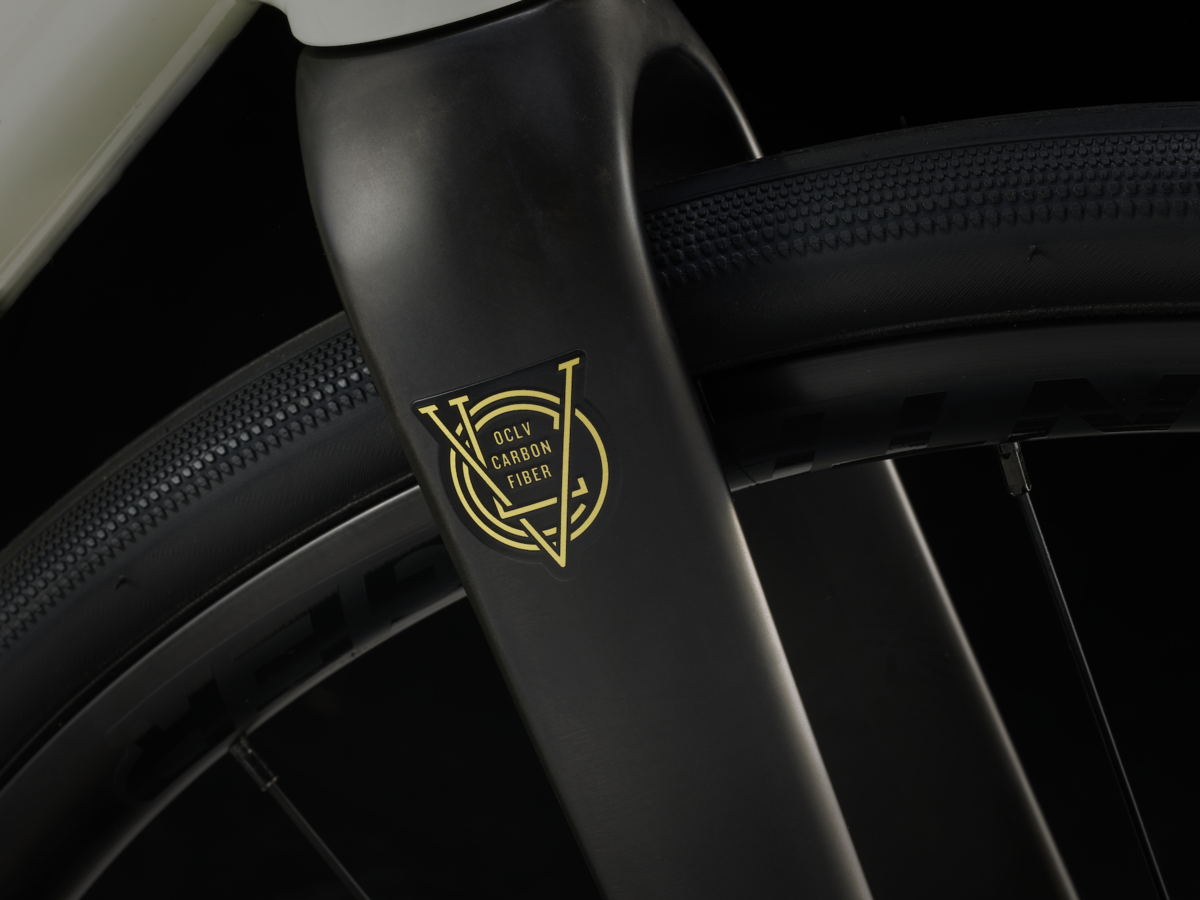

Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Weight	56 - 10.35 kg / 22.82 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Shifter	Shimano Tiagra R4720, 10 speed
Front derailleur	Shimano Tiagra 4700, 31.8mm clamp
Rear derailleur	Shimano Tiagra 4700, long cage, 34T max cog

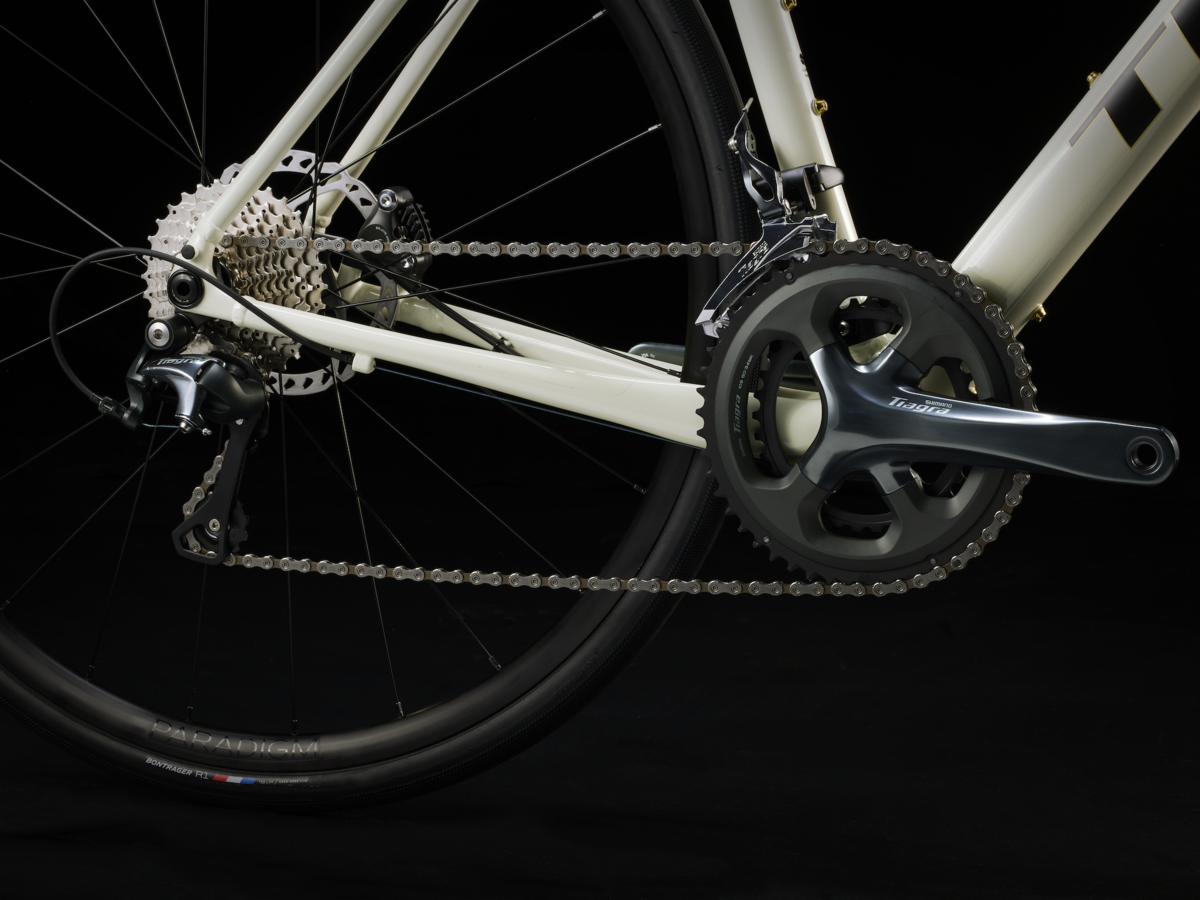

*Crank	Size: 44 Shimano Tiagra 4700, 50/34, 165mm length
	Size: 49, 52 Shimano Tiagra 4700, 50/34, 170mm length
	Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5mm length
	Size: 58, 61 Shimano Tiagra 4700, 50/34, 175mm length
Bottom bracket	Shimano RS501 BSA
Cassette	Shimano HG500, 11-32, 10 speed
Chain	Shimano Tiagra HG54, 10 speed
Max chainring size	1x: 50T, 2x: 50/34

Hub front	Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Saddle	Verse Short, steel rails, 145mm width
*Seatpost	Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
*Seatpost	Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

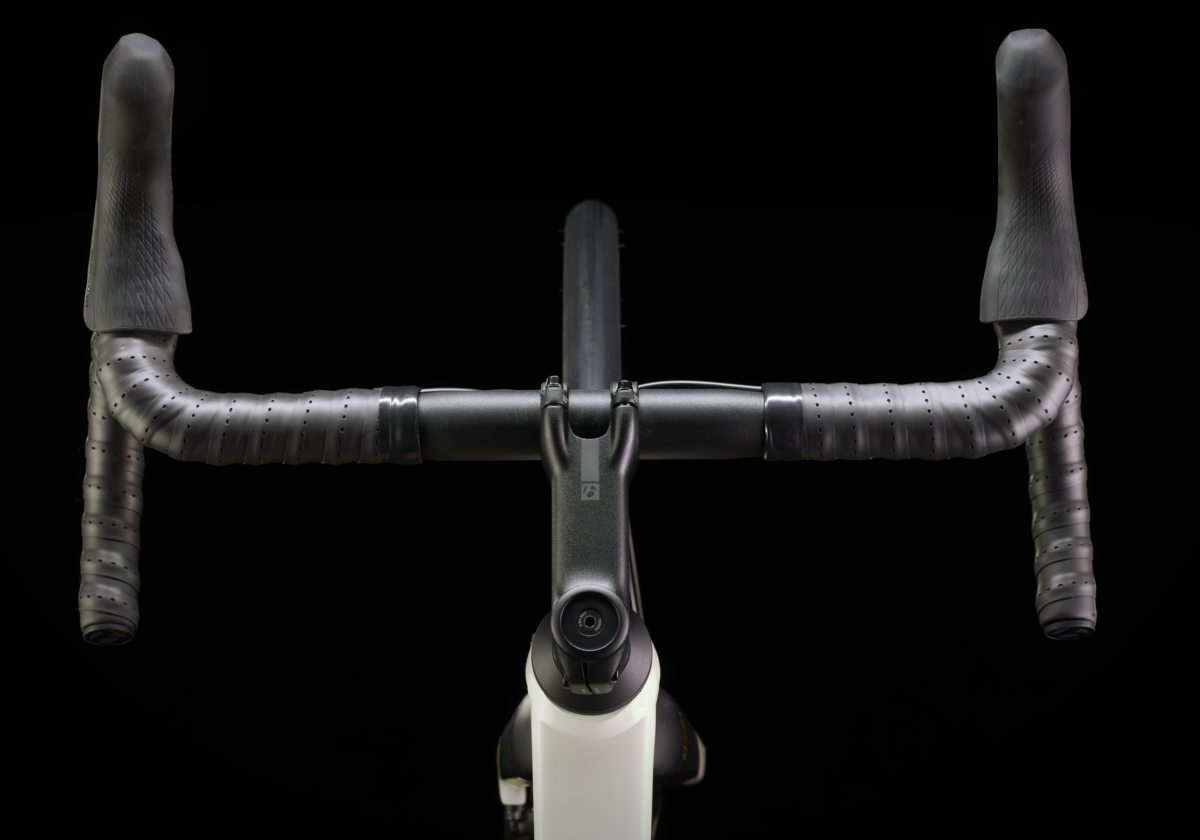

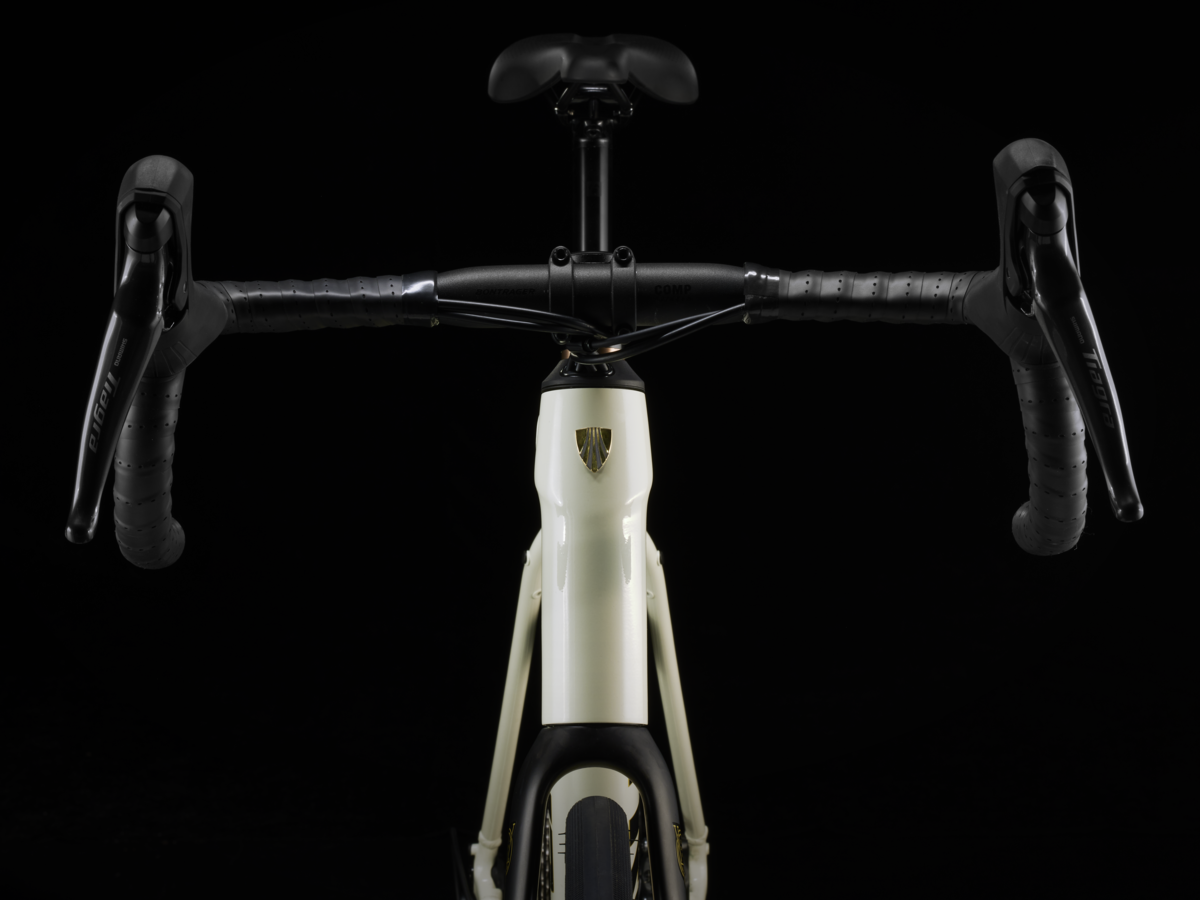

*Handlebar	Size: 44 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
	Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
	Size: 49 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: 52 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: 52 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
	Size: 54, 56 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
	Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
	Size: 58, 61 Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
	Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 44 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
	Size: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
	Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
	Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
	Size: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

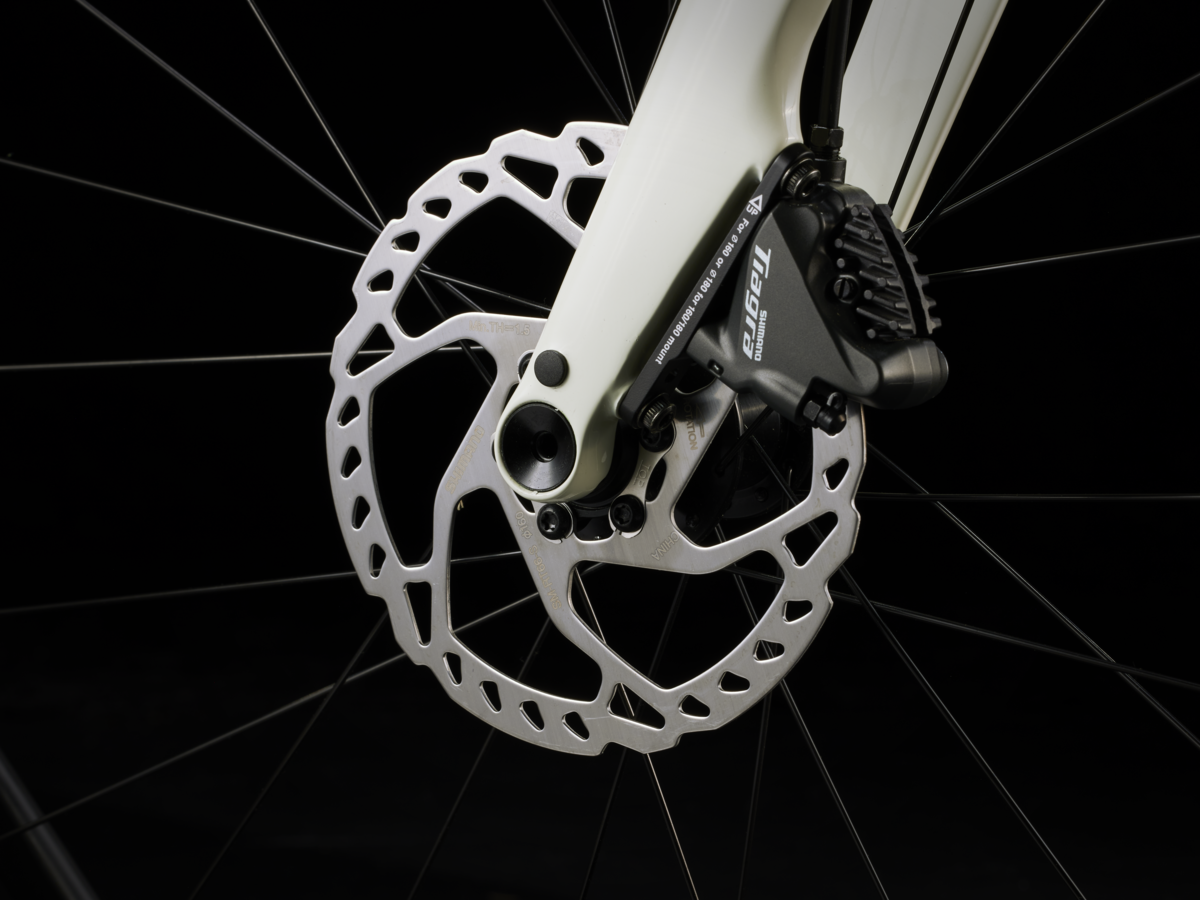

Brake	Shimano Tiagra hydraulic disc, flat mount
Brake rotor	Shimano RT66, 6-bolt, 160mm
Rotor size	Max brake rotor sizes: 160mm front & rear
