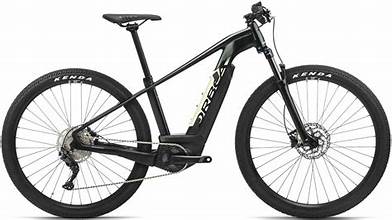

KERRAM 30

E-Bike MTB Kerram 30 Specifications

Frame:

• Material: Orbea Keram Hydroformed Alloy, internal cable routing
• Color: Metallic Dark Green / Lichen Green

Fork:

• Type: SR Suntour XCM32, coil, 100mm travel, 15x110mm

Drivetrain:

• Shifters: Shimano Deore M4100, 10-speed
• Rear Derailleur: Shimano Deore M5120 SGS Shadow Plus
• Crankset: FSA Bosch G3, 34T
• Cassette: Shimano Deore M4100 11-46T, 10-speed
• Chain: KMC e10 Turbo EPT, 10-speed

Brakes:

• Type: Shimano MT200 Hydraulic Disc
• Rotors: Shimano RT10, 180mm

Wheels:

• Rims: Orbea Tryp 30c Tubeless Ready
• Tires: Maxxis Rekon 2.40” FB 60 TPI Dual

Motor:

• Type: Bosch Performance Line CX Cruise (25km/h) GEN4

Battery:

• Type: Bosch PowerTube 500Wh

Display:

• Type: Bosch Purion

Cockpit:

• Handlebar: OC1 Flat 31.8mm, 740mm
• Stem: OC1 31.8mm interface, 7º
• Headset: FSA 1-1/8 - 1-1/2” Integrated

Seat:

• Saddle: Selle Royal 2058 DRN
• Seatpost: Alloy, 27.2mm

Pedals:

• Type: VP-537 Black

Weight:

• Approximate Weight: Around 23 kg (50.7 lbs) including the battery

Additional Features:

• Internal Cable Routing: For a clean look and protection from elements
• Boost 15x110mm: For increased stiffness and better handling
• Bosch Motor and Battery: Reliable power assistance for longer rides and challenging terrains

These specifications make the e-bike MTB Kerram 30 a robust and efficient option for mountain biking, offering both power and performance.
