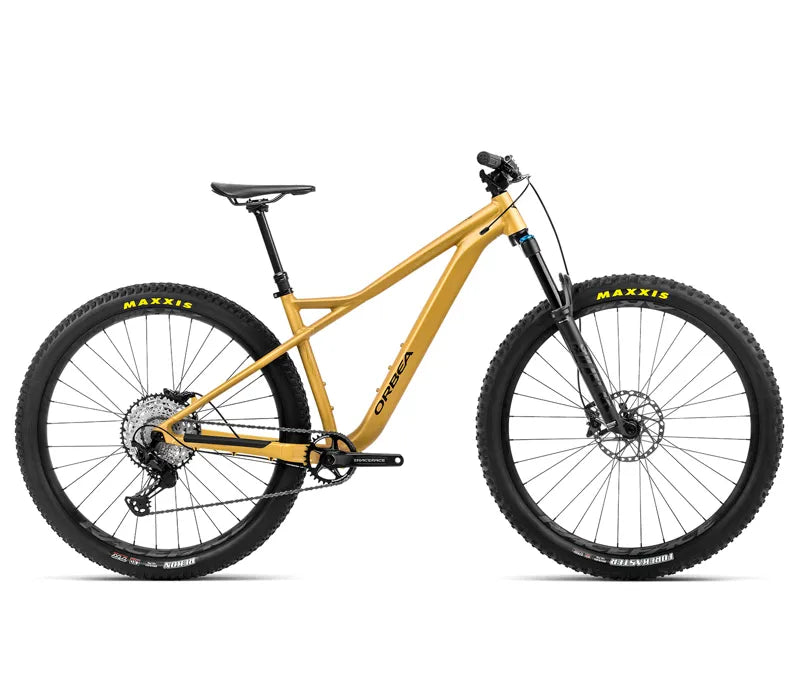

LAUFEY H-LTD

Frame

• Frame: Orbea Laufey Hydro Triple Butted, 29" wheels
• Fork: RockShox 35 Silver TK Q15x110 Solo Air 140mm

Drivetrain

• Rear Derailleur: Shimano XT M8100 SGS Shadow Plus
• Shifters: Shimano SLX M7100 I-Spec EV
• Cassette: Shimano CS-M7100 10-51t 12-Speed
• Chain: Shimano M6100

Brakes

• Brakes: Shimano M6100 Hydraulic Disc
• Rotors: Shimano RT54 180mm

Wheels

• Wheels: Orbea OC1 29c Tubeless Ready
• Tires: Maxxis Forekaster 2.60" FB 60 TPI Dual

Cockpit

• Handlebar: OC1 35mm 12mm Rise 780mm
• Stem: OC1 3D Forged 35mm interface 7º
• Seatpost: OC2 Dropper 31.6mm
• Saddle: Selle Royal 2058 DRN

Components

• Headset: Acros Alloy 1-1/8 - 1-1/2" Integrated
• Bottom Bracket: Shimano MT500

Weight

• Weight: Approximately 13.5 kg (without pedals)

Geometry (for reference size M)

• Top Tube Length: 625 mm
• Seat Tube Length: 419 mm
• Head Tube Angle: 65.5º
• Seat Tube Angle: 75º
• Wheelbase: 1194 mm
• Chainstay Length: 435 mm
• BB Height: 320 mm

Additional Features

• Color Options: Anthracite Glitter / Bright Red, Raw Carbon / Black
• Sizes Available: S, M, L, XL

These specifications can vary slightly depending on the exact configuration and regional availability. If you need more detailed information or specific dimensions related to packaging, please let me know!
