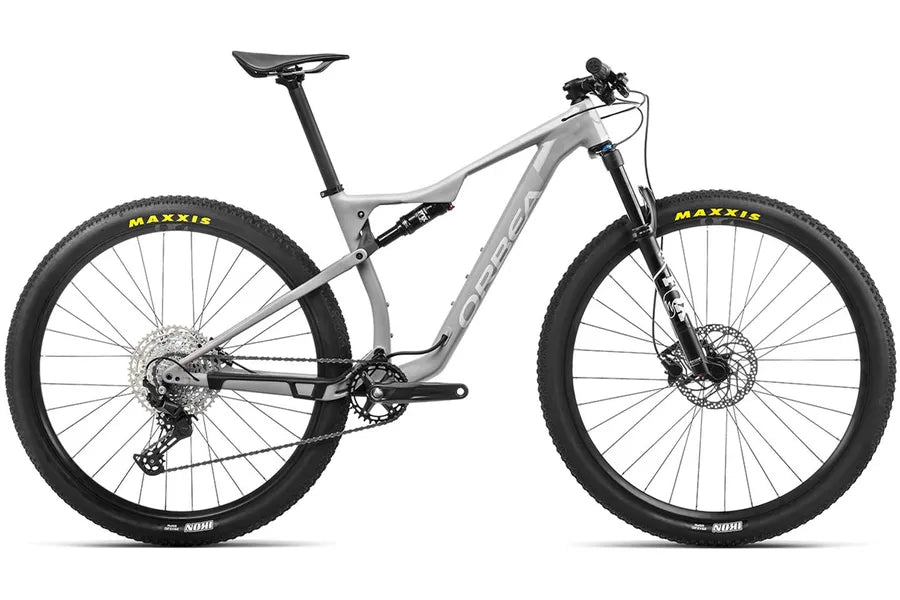

Oiz H20

Frameset

• Frame

  High polished hydroformed aluminum, 2020 alloy, Alloylink, UFO2 design
• Fork

  FOX 34 FLOAT SC Performance GRIP, remote Push-Unlock, QR15x110mm, 44mm offset, 120mm
• Shock

  FOX i-line DPS Performance, remote Push-Unlock, EVOL, custom tune, 190x45mm

Wheels

• Wheels

  Orbea OC1, 25mm inner width, tubeless ready
• Wheel Size

  29"
• Tires

  Maxxis Ikon 3C EXO TR, 29"x2.20", FB, 120 TPIMaxxis Ardent Dual EXO TR, 29"x2.2" FB

Drivetrain

• Chain

  435, Chain Security top guide, 32 tooth, Shimano M6100, 12-speed
• Crank

  Shimano MT611, 170mm (S), 175mm (M-XL)
• Bottom Bracket

  334, PF92 Press Fit
• Rear Derailleur

  Shimano XT M8100, SGS, Shadow Plus, 12-speed
• Shifters

  Shimano Deore M6100 I-SPEC EV, 12-speed

Components

• Brakeset

  Shimano M6100 hydraulic disc, Shimano M6100
• Handlebar

  OC1 Flat, 31.8mm x 740mm
• Saddle

  Selle Royal Seta Sport
• Seatpost

  OC2 forge head, 0 offset, 31.6mm, 34.9mm single-bolt, 31.6mm, 34.9mm single-bolt
• Stem

  OC1 31.8mm interface, -7°, 60mm (S), 70mm (M-L), 90mm (XL)
• Headset

  Acros Alloy, integrated, 41.8mm upper, 51.8mm lower ACB (IS42/28.6, IS52/40)
