Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
Fork
RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel

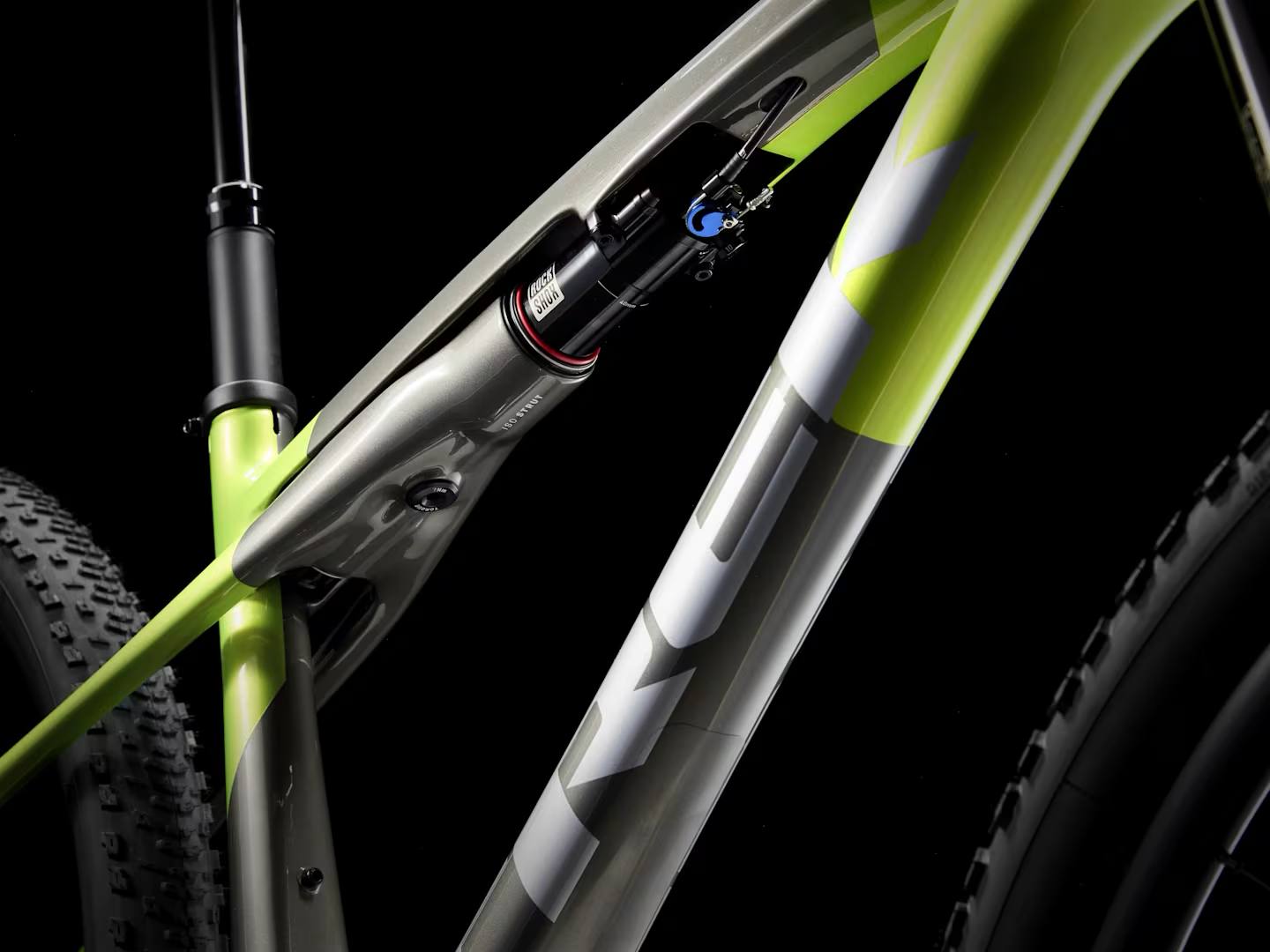

Shock
Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
Suspension lever
RockShox TwistLoc Ultimate
Max compatible fork travel
120 mm (533 mm axle-to-crown)
Wheel front
Bontrager Kovee Comp 25, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
Wheel rear
Bontrager Kovee Comp 25, Tubeless-Ready, Rapid Drive 108, Boost148, 12 mm thru axle
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
Shifter
SRAM Eagle AXS POD
Rear derailleur
SRAM GX Eagle AXS, T-Type
Crank
Size:S, M
SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 170 mm length
Size:M/L, L, XL
SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 175 mm length
Bottom bracket
SRAM DUB, 92 mm, PressFit
Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Max. chainring size
1x: 38T, min 30T
Seatpost
Size:S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Size:M, M/L
Bontrager Line Dropper, 125 mm travel, internal routing, 31.6 mm, 395mm length
Size:L, XL
Bontrager Line Dropper, 150 mm travel, internal routing, 31.6 mm, 440mm length
Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
Stem
Size:S, M
Bontrager Elite, 35 mm, 13-degree, 60 mm length
Size:M/L
Bontrager Elite, 35 mm, 13-degree, 70 mm length
Size:L
Bontrager Elite, 35 mm, 13-degree, 80 mm length
Size:XL
Bontrager Elite, 35 mm, 13-degree, 90 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM Level Bronze 2-piston hydraulic disc
Brake rotor
Size:S, M, M/L, L, XL
SRAM CenterLine, 6-bolt, round-edge, 160 mm
Size:S, M, M/L, L, XL
SRAM CentreLine, 6-bolt, round edge, 180 mm
Rotor size
Max brake rotor sizes: 160mm front & rear
Battery
SRAM eTap battery pack (with charger)
Weight
M - 11.80 kg / 26.02 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
