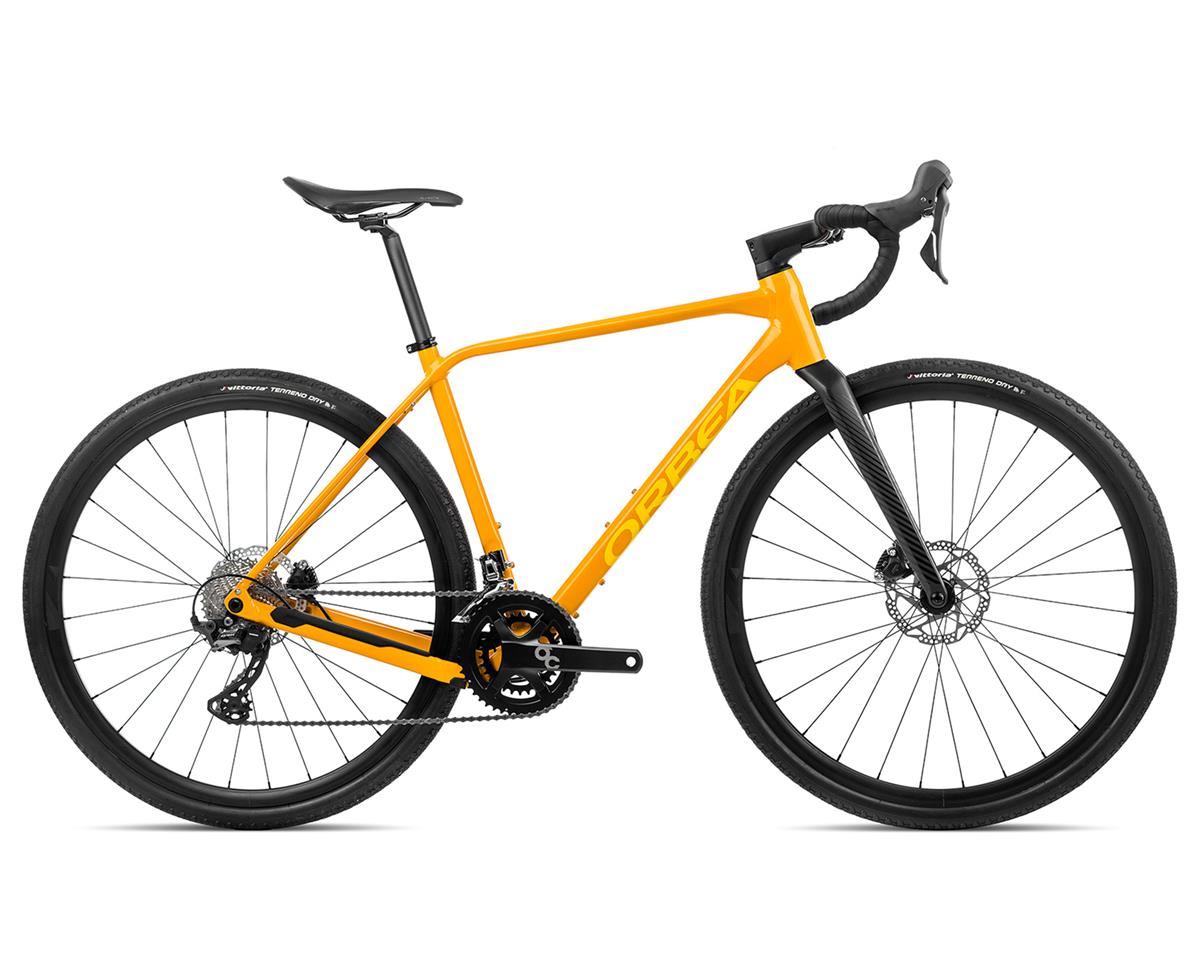

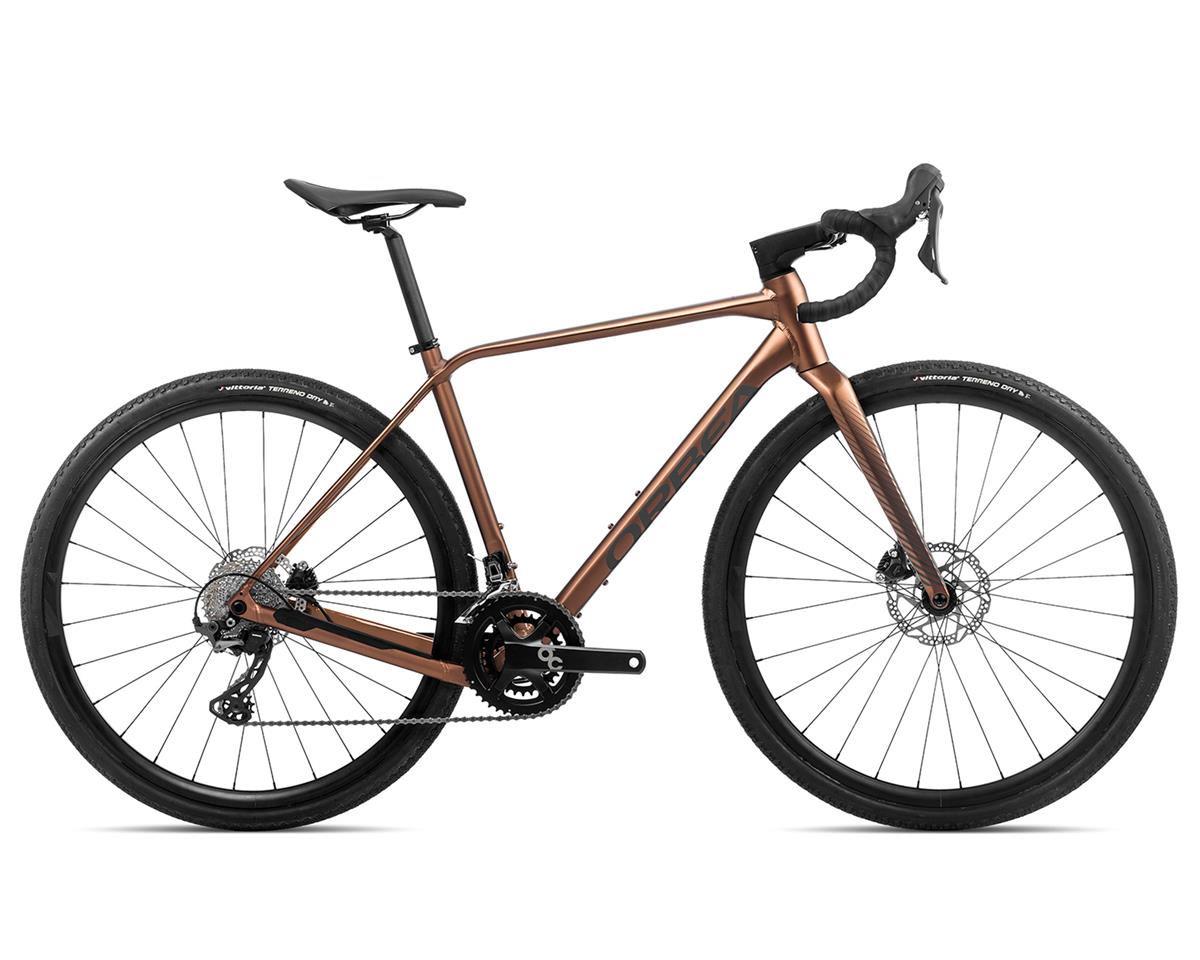

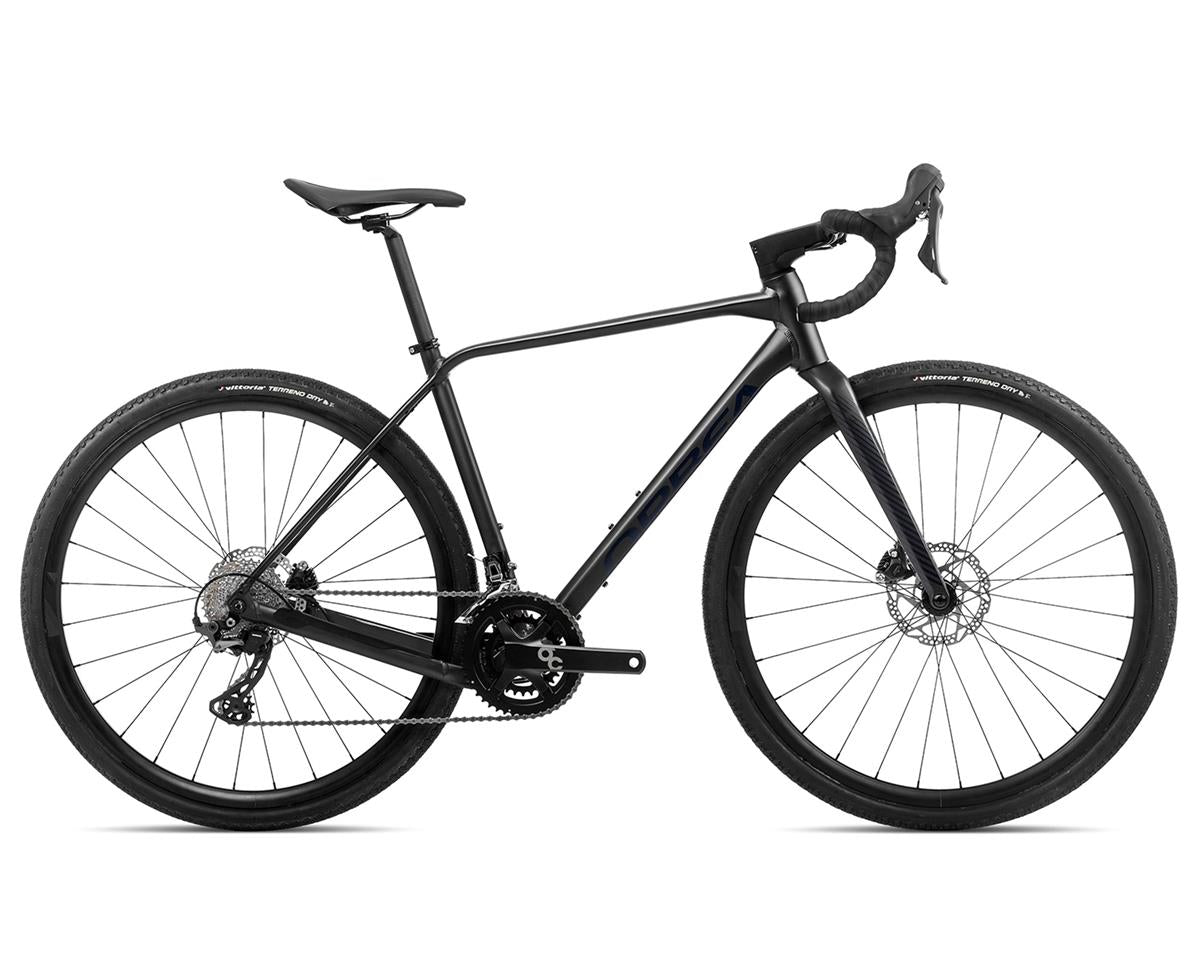

Terra H30

Frame and Fork

• Frame: Orbea Terra Hydro, aluminum, with internal cable routing
• Fork: Orbea Terra OMP Carbon, full carbon steerer, 12x100 mm Thru-axle

Drivetrain

• Shifters: Shimano GRX RX600
• Front Derailleur: Shimano GRX RX810
• Rear Derailleur: Shimano GRX RX810
• Crankset: Shimano RX600, 40-30T
• Cassette: Shimano CS-HG700-11, 11-34T, 11-speed
• Chain: Shimano HG601-11

Brakes

• Brakes: Shimano RX400 Hydraulic Disc

Wheels

• Wheelset: Orbea Ready GR, 12x100 mm Thru-axle front, 12x142 mm Thru-axle rear
• Tires: Vittoria Terreno Dry Gravel G2.0 TNT 700x38c

Components

• Handlebar: OC Gravel, aluminium, 12º flare
• Stem: OC2
• Seatpost: OC2, 27.2 mm
• Saddle: Selle Royal Seta RS

Weight

• Weight: Varies by size and configuration; typically around 10.5 kg (23.15 lbs) for a medium-sized bike

Additional Features

• Bottom Bracket: Shimano Press Fit BB72
• Headset: FSA 1-1/2" - 1-1/8" Integrated
• Accessories: Includes mounts for mudguards and racks
