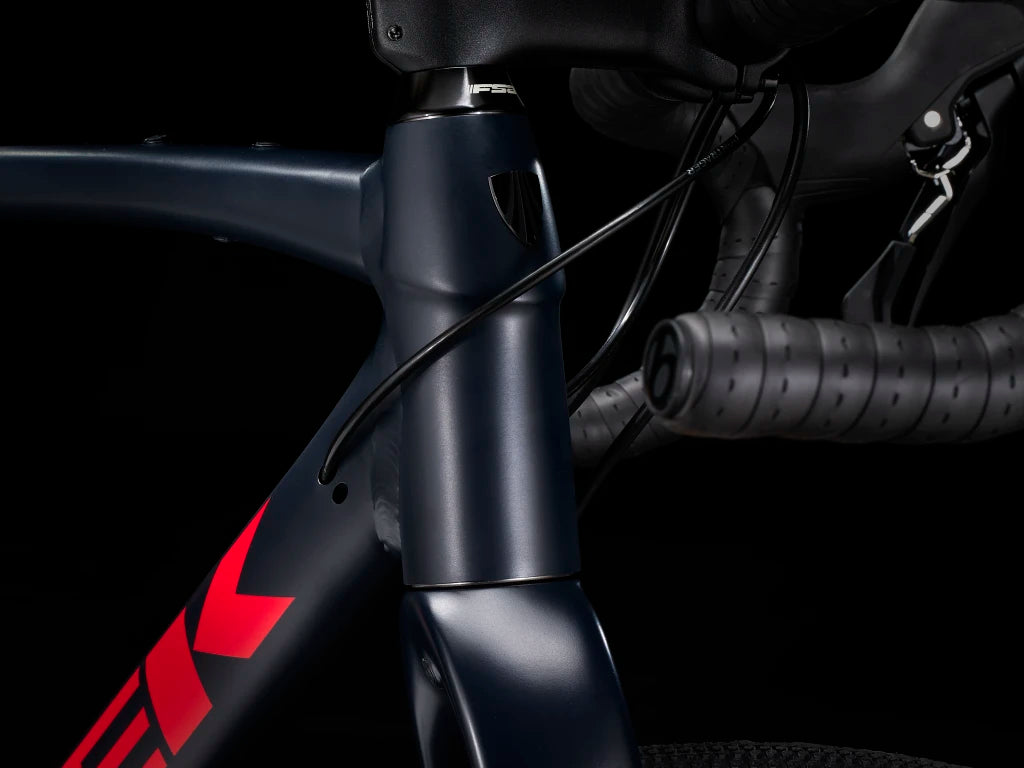

Trek Checkpoint ALR 5 Gravel Bike

Name: Trek Checkpoint ALR 5 Gravel Bike
Brand: Iloilo Bike Shop
Price: 138980.0 PHP
Availability: InStock

₱138,980.00 PHP

~~₱149,980.00 PHP~~ ₱138,980.00 PHP

Sale Sold out

Or 4 payments for only ₱1,000 with

. Learn More.

Size Medium Small Large

Product variants

Quantity

***Accessories not included

Checkpoint ALR 5 is the best value gravel bike in the line-up. It's a high-quality build that willhold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure.

Unlike the pure roadie who measures watts and weighs out meals, you favour epic off-road adventures that probably end with a beer and a bag of chips. But that doesn't mean you'll compromise on performance. You expect to get a lot for your hard-earned money, including quality, versatility, durability and a ridiculous amount of fun.

A stout aluminium frame with a progressive geometry that's stable at speed and efficient when you're grinding up a climb, hidden cables that won't interfere with bags, rack and mudguard mounts and integrated frame bag mounts, a 2x11 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel, hydraulic disc brakes for all-condition stopping power, tubeless-ready rims and wide 700x40c gravel tyres for added stability and traction.

If the amount of adventure you can get per pound spent is a priority for you, you won't do better than Checkpoint ALR 5. Quality parts, a durable alloy frame and a wealth of features like extra tyre clearance and customisation options so you can confidently take on bigger, better adventures.

Frameset

Frame	300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle
Fork	Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit	Gravel

Wheels

Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
*Rim	Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
*Rim	Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes	14 g stainless steel
Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager Aeolus XXX rim strip
Max tyre size	700x45c / 650x2.1" Bontrager tires

Drivetrain

Shifter	Shimano GRX RX600, 11-speed
Front derailleur	Shimano GRX RX810, braze-on
Rear derailleur	Shimano GRX RX810, long cage, 34T max cog
*Crank	Size: 49 Shimano GRX RX600, 46/30, 165 mm length
	Size: 52 Shimano GRX RX600, 46/30, 170 mm length
	Size: 54, 56 Shimano GRX RX600, 46/30, 172.5 mm length
	Size: 58, 61 Shimano GRX RX600, 46/30, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 HG700-11, 11-34, 11-speed
Chain	Shimano HG601
Max. chainring size	1x: 44T SRAM or 50T Shimano, 2x: 50/34

Components

*Saddle	Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
*Saddle	Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width
Seatpost	Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
*Handlebar	Size: 49 Bontrager Elite Gravel, 38 cm width
	Size: 52 Bontrager Elite Gravel, 40 cm width
	Size: 54, 56 Bontrager Elite Gravel, 42 cm width
	Size: 58, 61 Bontrager Elite Gravel, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Head set	FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake rotor	Shimano SM-RT70, CenterLock, 160 mm
